Description

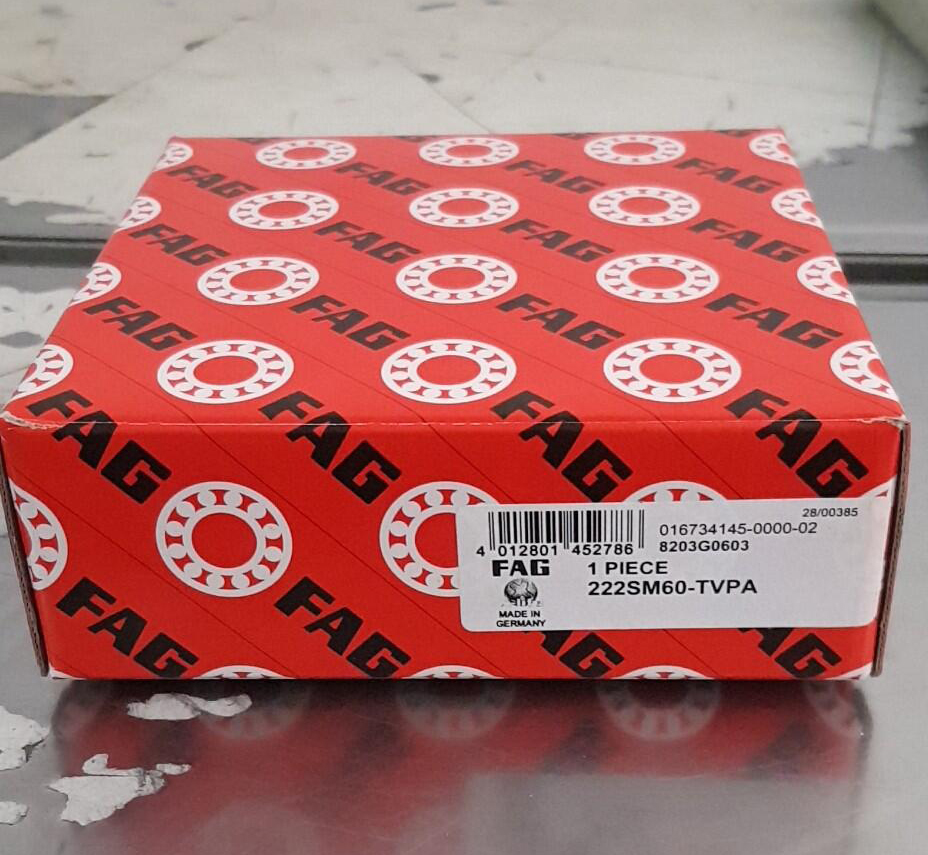

FAG Spherical roller bearings 222SM60-TVPA

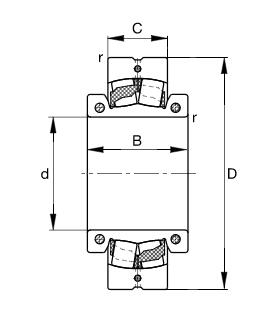

| d | 60 mm | |
| D | 120 mm | |
| C | 31 mm |
| B | 55 mm | |
| rmin | 1,5 mm |
| m | 2,08 kg | Mass |
| Cr | 136000 N | Basic dynamic load rating, radial |
| C0r | 155000 N | Basic static load rating, radial |
| Cur | 15800 N | Fatigue limit load, radial |
| nG | 2850 1/min | Limiting speed |
| e | 0,23 | |
| Y1 | 2,98 | |
| Y2 | 4,44 | |
| Y0 | 2,92 | |
| Fa max | 5400 N | Permissible axial load, for inner ring without axial abutment |
| Mi | 8,5 Nm | Tightening torque per clamping screw |
| Ma | 1,5 Nm | Tightening torque per clamping screw |
| 22213K | Designation, spherical roller bearing, unsplit | |
| H313 | Designation, adapter sleeve | |
| SNV120-F-L | Designation, plummer block housing |
We are professional supplier of bearings, if you have any inquiry of FAG Bearings or other demand about bearings please contact me freely, we will support in the first time. More information please contact us.
