Description

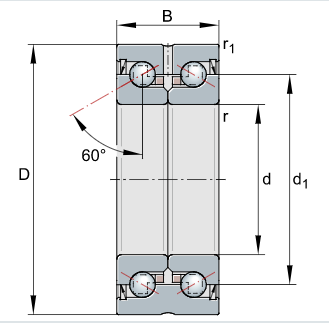

INA Bearing Axial Angular Contact Ball Bearings ZKLN1545-2RS-PE
| d | 15 mm | Tolerance: 0/-0,01 |
| D | 45 mm | Tolerance: 0/-0,011 |
| B | 25 mm | Tolerance: 0/-0,25 |
| 60 ° | Contact angle | |
| Da max | 35 mm | |
| d1 | 28 mm | |
| da min | 20 mm | |
| r1 min | 0,6 mm | |
| rmin | 0,3 mm |
We are professional supplier of bearings, if you have any inquiry of INA Bearings or other demand about bearings please contact me freely, we will support in the first time. More information please contact us.
