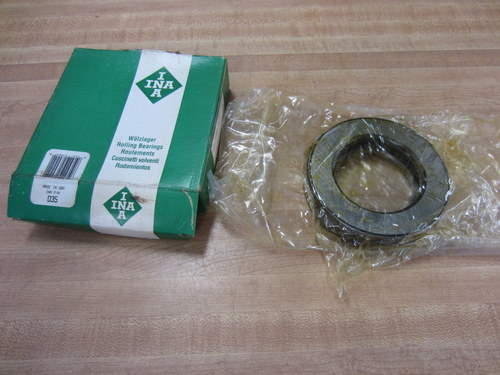

INA D35 Axial deep groove ball bearing
Brand:INA
Original:
Type:Deep groove ball bearing
Item:D35 Axial
Inner:
Outner:
Thickness:
Weight:
Description
INA D35 Axial deep groove ball bearings are single direction, with retainer, inch sizes..
Technical data of INA bearing D35
ID: 2 5/8 inch / 66,675 mm
OD: 4,344 inch / 110,338 mm
Width: 1 inch / 25,4 mm
Weight; 1,95 lbs / 886 g
Basic dynamic load rating: 18100 lbf / 81000 N
Basic static load rating: 49000 lbf / 218000 N
Limiting speed: 1600 rpm
INA Axial deep groove ball bearings D-series catalogue
| Part No. |
d |
D |
B |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
|
| D1 |
1/2 |
12,7 |
1,219 |
30,963 |
0,563 |
14,3 |
| D2 |
9/16 |
14,288 |
1,219 |
30,963 |
0,563 |
14,3 |
| D3 |
5/8 |
15,875 |
1,344 |
34,138 |
0,563 |
14,3 |
| D4 |
11/16 |
17,463 |
1,344 |
34,138 |
0,563 |
14,3 |
| D5 |
3/4 |
19,05 |
1,469 |
37,313 |
0,563 |
14,3 |
| D6 |
13/16 |
20,638 |
1,469 |
37,313 |
0,563 |
14,3 |
| D7 |
7/8 |
22,225 |
1,844 |
46,838 |
0,625 |
15,875 |
| D8 |
15/16 |
23,813 |
1,844 |
46,838 |
0,625 |
15,875 |
| D9 |
1 |
25,4 |
1,969 |
50,013 |
0,625 |
15,875 |
| D10 |
1/16 |
26,988 |
1,969 |
50,013 |
0,625 |
15,875 |
| D11 |
1 1/4 |
28,575 |
2,094 |
53,188 |
0,625 |
15,875 |
| D12 |
1 3/16 |
30,163 |
2,094 |
53,188 |
0,625 |
15,875 |
| D13 |
1 1/4 |
31,75 |
2,344 |
59,538 |
0,625 |
15,875 |
| D14 |
1 5/16 |
33,338 |
2,344 |
59,538 |
0,625 |
15,875 |
| D15 |
1 3/8 |
34,925 |
2,469 |
62,713 |
0,625 |
15,875 |
| D16 |
1 7/16 |
36,513 |
2,469 |
65,888 |
0,625 |
15,875 |
| D17 |
1 1/2 |
38,1 |
2,594 |
65,888 |
0,625 |
15,875 |
| D17-A1 |
1 1/2 |
38,1 |
2,545 |
64,643 |
0,629 |
15,99 |
| D18 |
1 9/16 |
39,688 |
2,594 |
65,888 |
0,625 |
15,875 |
| D19 |
1 5/8 |
41,275 |
2,969 |
75,413 |
0,813 |
20,65 |
| D20 |
1 11/16 |
42,863 |
2,969 |
75,413 |
0,813 |
20,65 |
| D21 |
1 3/4 |
44,45 |
3,094 |
78,588 |
0,813 |
20,65 |
| D22 |
1 13/16 |
46,038 |
3,094 |
78,588 |
0,813 |
20,65 |
| D23 |
1 7/8 |
47,625 |
3,219 |
81,763 |
0,813 |
20,65 |
| D24 |
1 15/16 |
49,213 |
3,219 |
81,763 |
0,813 |
20,65 |
| D25 |
2 |
50,8 |
3,344 |
84,938 |
0,813 |
20,65 |
| D26 |
2 1/16 |
52,388 |
3,344 |
84,938 |
0,813 |
20,65 |
| D27 |
2 1/8 |
53,975 |
3,594 |
91,288 |
0,813 |
20,65 |
| D28 |
2 3/16 |
55,563 |
3,594 |
91,288 |
0,813 |
20,65 |
| D29 |
2 1/4 |
57,15 |
3,719 |
94,463 |
0,813 |
20,65 |
| D30 |
2 5/16 |
58,738 |
3,719 |
94,463 |
0,813 |
20,65 |
| D31 |
2 3/8 |
60,325 |
3,844 |
97,638 |
0,813 |
20,65 |
| D32 |
2 7/16 |
61,913 |
3,844 |
97,638 |
0,813 |
20,65 |
| D33 |
2 1/2 |
63,5 |
3,969 |
100,813 |
0,813 |
20,65 |
| D34 |
2 9/16 |
65,088 |
3,969 |
100,813 |
0,813 |
20,65 |
| D35 |
2 5/8 |
66,675 |
4,344 |
110,338 |
1 |
25,4 |
| D36 |
2 11/16 |
68,263 |
4,344 |
110,338 |
1 |
25,4 |
| D37 |
2 3/4 |
69,85 |
4,469 |
113,513 |
1 |
25,4 |
| D38 |
2 13/16 |
71,438 |
4,469 |
113,513 |
1 |
25,4 |
| D39 |
2 15/16 |
74,613 |
4,594 |
116,688 |
1 |
25,4 |
| D39-1/2 |
3 |
76,2 |
4,594 |
116,688 |
1 |
25,4 |
| D40 |
3 |
76,2 |
4,719 |
119,863 |
1 |
25,4 |
| D41 |
3 1/4 |
82,55 |
4,969 |
126,213 |
1 |
25,4 |
| D42 |
3 1/2 |
88,9 |
5,219 |
132,563 |
1 |
25,4 |
