Description

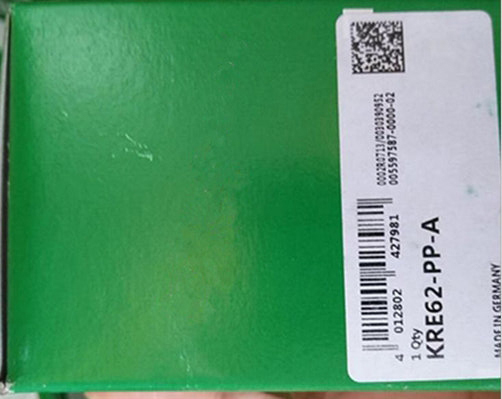

INA KRE62-PP Stud type track rollers bearing

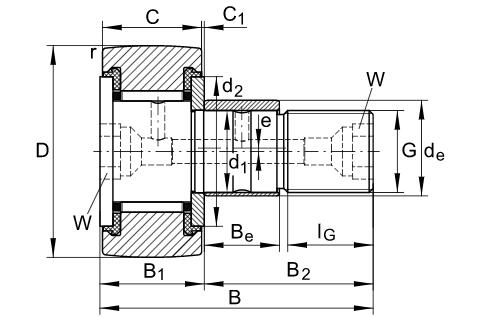

Detailed data of INA KRE62-PP is shown as follow
| D | 62 mm | |
| de | 28 mm | Eccentric collar |
| Tolerance: h9 | ||
| B | 80 mm | |
| B1 max | 30,6 mm | |
| B2 | 49,5 mm | |
| B3 | 11 mm | |
| Be | 22 mm | Eccentric collar |
| C | 29 mm | |
| C1 | 0,8 mm | |
| d1 | 24 mm | Tolerance: h7 |
| d2 | 44 mm | |
| d3 | 4 mm | |
| e | 1 mm | Eccentric collar |
| G | M24x1,5 | |
| IG | 25 mm | |
| rmin | 1 mm | |
| W | 14 mm | Nominal dimension for hexagonal socket |
| m | 789 g | Mass |
| MA | 220 Nm | Nut tightening torque |
| Cr w | 26000 N | Effective dynamic load rating as track roller (radial) |
| C0r w | 48000 N | Effective static load rating as track roller (radial) |
| Cur w | 6800 N | Fatigue limit load |
| nD G | 1900 1/min | Speed (with continuous operation and grease lubrication) |
| NIPA3X9,5 | Drive fit lubrication nipple | |
| Drive fit lubrication nipples are supplied loose. | ||
| Only these lubrication nipples should be used. | ||
| AP | AP14 | Suitable central lubrication adapter for connection to a central lubrication system |
