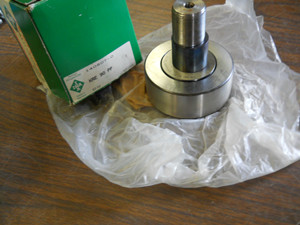

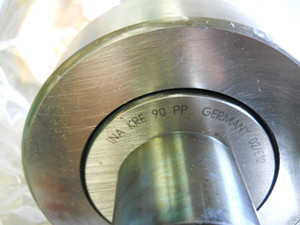

INA KRE90-PP Stud type track rollers
Brand:INA
Original:
Type:Cylindrical roller bearing
Item:
Inner:90mm
Outner:35mm
Thickness:100mm
Weight:2.032 kg
Description
INA KRE90-PP Stud type track rollers are with eccentric collar. Axial guidance is provided by the contact rib and contact washers. They has a three-stage seal comprising plastic axial plain washers with formed lips on both sides of the bearing.
Product data of INA KRE90-PP Stud type track rollers
D：90 mm
de：35 mm
B：100 mm
Mass; 2.032 kg
Nut tightening torque: 450 Nm
Effective dynamic load rating as track roller (radial): 40500 N
Effective static load rating as track roller (radial)：83000 N
Fatigue limit load:11700 N
Speed (with continuous operation and grease lubrication): 1300 rpm
Drive fit lubrication nipple: NIPA3X9,5
Catalogue of INA Stud type Track roller series KRE—PP
| P/N |
D mm |
d1 mm |
B mm |
| KRE16-PP |
16 |
9 |
28 |
| KRE19-PP |
19 |
11 |
32 |
| KRE22-PP |
22 |
13 |
36 |
| KRE26-PP |
26 |
13 |
36 |
| KRE30-PP |
30 |
15 |
40 |
| KRE32-PP |
32 |
15 |
40 |
| KRE35-PP |
35 |
20 |
52 |
| KRE40-PP |
40 |
22 |
58 |
| KRE47-PP |
47 |
24 |
66 |
| KRE52-PP |
52 |
24 |
66 |
| KRE62-PP |
62 |
28 |
80 |
| KRE72-PP |
72 |
28 |
80 |
| KRE80-PP |
80 |
35 |
100 |
| KRE90-PP |
90 |
35 |
100 |
