Description

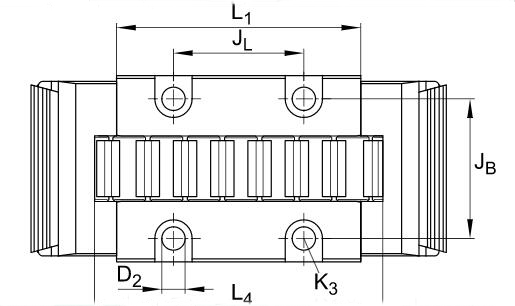

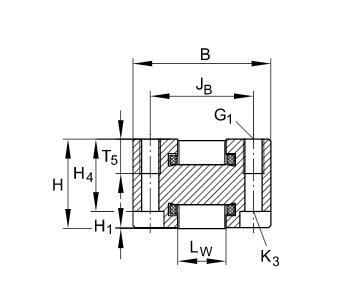

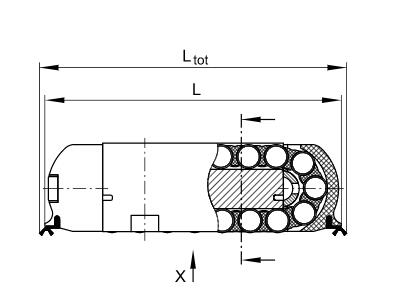

INA Linear roller bearings RUS19069
| L | 70,4 mm | |
| B | 27 mm | |
| H | 19 mm |
| 1) | Maximum screw depth 6mm | |
| D2 | 3,5 mm | for fixing screws
The stated torques represent maximum values for the reliable transmission of forces in vibration-free, quasistatic applications (S0=1). We recommend that the tightening torques of the screw connection to the adjacent construction should be determined at the customer under the specific application conditions and operating conditions, observing the data in VDI Guideline 2230 Part 1 (2015) and the data in the description. |
| G1 | M4 | for fixing screws to DIN ISO 4762-12.9
Max. tightening torque [MA] in Nm: The stated torques represent maximum values for the reliable transmission of forces in vibration-free, quasistatic applications (S0=1). We recommend that the tightening torques of the screw connection to the adjacent construction should be determined at the customer under the specific application conditions and operating conditions, observing the data in VDI Guideline 2230 Part 1 (2015) and the data in the description. |
| H1 | 0,2 mm | |
| H4 | 15,2 mm | |
| JB | 20,6 mm | Tolerance: +/-0,1 |
| JL | 25,5 mm | Tolerance: +/-0,1 |
| K3 | M3 | for fixing screws to DIN ISO 4762-12.9
Max. tightening torque [MA] in Nm: The stated torques represent maximum values for the reliable transmission of forces in vibration-free, quasistatic applications (S0=1). We recommend that the tightening torques of the screw connection to the adjacent construction should be determined at the customer under the specific application conditions and operating conditions, observing the data in VDI Guideline 2230 Part 1 (2015) and the data in the description. |
| L1 | 43,8 mm | |
| L4 | 50 mm | Minimum support length |
| Ltot | 74 mm | |
| Lw | 10 mm | |
| T5 | 6,2 mm |
| m | 0,19 kg | Mass |
| C | 42000 N | Basic dynamic load ratings |
| C0 | 66000 N | Basic static load rating |
