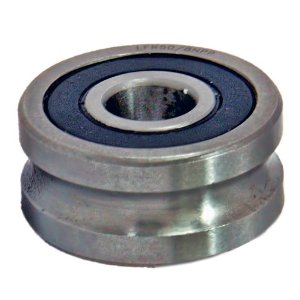

INA LR5306 NPPU roller bearing
Brand:INA
Original:
Type:Cylindrical roller bearing
Item:LR5306 NPPU
Inner:30mm
Outner:80mm
Thickness:30.2mm
Weight:0.37kg
Description
INA LR5000 series are roller bearings, there are more than 3000 designs for all current applications. With 60 years development, INA track roller bearings have stood for creative applications solutions as well as top engineering and production expertise to the worldwide customers.
INA bearing LR5306 NPPU
Dimension: 30mm x 80mm x 30.2mm
Weight: 0.37 KGS
Radial effective dynamic load rating as track roller: 35500N
Radial effective static load rating as track roller: 25500N
Fatigue limit road: 1330N
Speed: 3100 1/min
Origin: made in Germany
The following are INA track roller bearings list,
| LR 200 NPPU | LR200-2RS |
| LR 200 NPP | LR200-X-2RS |
| LR200-2RS-X | LR200-X-2RS |
| LR 201 NPPU | LR201-2RSR |
| LR 201 NPP | LR201-X-2RSR |
| LR201-2RSR-X | LR201-X-2RSR |
| LR 202 NPPU | LR202-2RSR |
| LR 202 NPP | LR202-X-2RSR |
| LR202-2RSR-X | LR202-X-2RSR |
| LR 203 NPPU | LR203-2RSR |
| LR 203 NPP | LR203-X-2RSR |
| LR203-2RSR-X | LR203-X-2RSR |
| LR 204 NPPU | LR204-2RSR |
| LR 204 NPP | LR204-X-2RSR |
| LR204-2RSR-X | LR204-X-2RSR |
| LR 205 NPPU | LR205-2RSR |
| LR 205 NPP | LR205-X-2RSR |
| LR205-2RSR-X | LR205-X-2RSR |
| LR 206 NPPU | LR206-2RS |
| LR 206 NPP | LR206-X-2RS |
| LR206-2RS-X | LR206-X-2RS |
| LR 207 NPPU | LR207-2RS |
| LR 207 NPP | LR207-X-2RS |
| LR207-2RS-X | LR207-X-2RS |
| LR 209 NPPU | LR209-2RS |
| LR 209 NPP | LR209-X-2RS |
| LR209-2RS-X | LR209-X-2RS |
| LR 50/5 NPPU | LR50/5-2RSR |
| LR 50/6 NPPU | LR50/6-2RSR |
| LR 50/7 NPPU | LR50/7-2RSR |
| LR 50/8 NPPU | LR50/8-2RSR |
| LR 5000 NPPU | LR5000-2RS |
| LR 5001 NPPU | LR5001-2RS |
| LR 5002 NPPU | LR5002-2RS |
| LR 5003 NPPU | LR5003-2RS |
| LR 5004 NPPU | LR5004-2RS |
| LR 5005 NPPU | LR5005-2RS |
| LR 5006 NPPU | LR5006-2RS |
| LR 5007 NPPU | LR5007-2RS |
| LR 5200 NPPU | LR5200-2RS |
| LR 5200 KDDU | LR5200-2Z |
| LR 5200 KDD | LR5200-X-2Z |
| LR5200-2Z-X | LR5200-X-2Z |
| LR 5201 NPPU | LR5201-2RS |
| LR 5201 KDDU | LR5201-2Z |
| LR 5201 KDD | LR5201-X-2Z |
| LR5201-2Z-X | LR5201-X-2Z |
| LR 5202 NPPU | LR5202-2RS |
| LR 5202 KDDU | LR5202-2Z |
| LR 5202 KDD | LR5202-X-2Z |
| LR5202-2Z-X | LR5202-X-2Z |
| LR 5203 NPPU | LR5203-2RS |
| LR 5203 KDDU | LR5203-2Z |
| LR 5203 KDD | LR5203-X-2Z |
| LR5203-2Z-X | LR5203-X-2Z |
| LR 5204 NPPU | LR5204-2RS |
| LR 5204 KDDU | LR5204-2Z |
| LR 5204 KDD | LR5204-X-2Z |
| LR5204-2Z-X | LR5204-X-2Z |
| LR 5205 NPPU | LR5205-2RS |
| LR 5205 KDDU | LR5205-2Z |
| LR 5205 KDD | LR5205-X-2Z |
| LR5205-2Z-X | LR5205-X-2Z |
| LR 5206 NPPU | LR5206-2RS |
| LR 5206 KDDU | LR5206-2Z |
| LR 5206 KDD | LR5206-X-2Z |
| LR5206-2Z-X | LR5206-X-2Z |
| LR 5207 NPPU | LR5207-2RS |
| LR 5207 KDDU | LR5207-2Z |
| LR 5207 KDD | LR5207-X-2Z |
| LR5207-2Z-X | LR5207-X-2Z |
| LR 5208 NPPU | LR5208-2RS |
| LR 5208 KDDU | LR5208-2Z |
| LR 5208 KDD | LR5208-X-2Z |
| LR5208-2Z-X | LR5208-X-2Z |
| LR 5303 NPPU | LR5303-2RS |
| LR 5304 NPPU | LR5304-2RS |
| LR 5304 KDDU | LR5304-2Z |
| LR 5305 NPPU | LR5305-2RS |
| LR 5305 KDDU | LR5305-2Z |
| LR 5306 NPPU | LR5306-2RS |
| LR 5306 KDDU | LR5306-2Z |
| LR 5307 NPPU | LR5307-2RS |
| LR 5307 KDDU | LR5307-2Z |
| LR 5308 NPPU | LR5308-2RS |
| LR 5308 KDDU | LR5308-2Z |
| LR 6000 NPPU | LR6000-2RSR |
| LR 6001 NPPU | LR6001-2RSR |
| LR 604 NPPU | LR604-2RSR |
| LR 605 NPPU | LR605-2RSR |
| LR 606 NPPU | LR606-2RSR |
| LR 607 NPPU | LR607-2RSR |
| LR 608 NPPU | LR608-2RSR |
