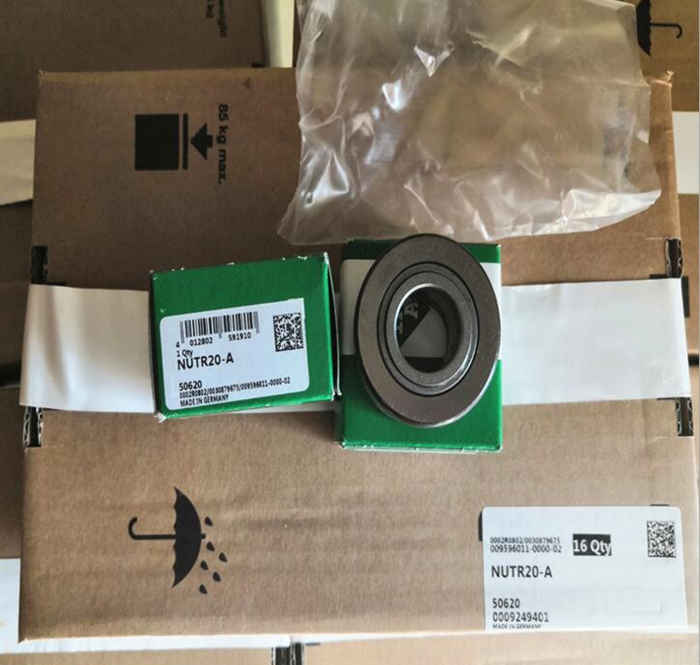

INA NUTR20-A Yoke type track rollers bearing

Brand:INA

Original:GERMANY

Type:Cylindrical roller bearing

Item:INA NUTR20-A

Inner:20MM

Outner:47MM

Thickness:25MM

Weight:0.24KG

INA BEARING

Description

INA NUTR20-A Yoke type track rollers bearing

Detailed data of INA HK6012 is shown as follow

d	20 mm
D	47 mm
B	25 mm
C	24 mm
d2	27 mm
r1 min	0,5 mm
rmin	1 mm
m	245 g	Mass
Cr w	28500 N	Effective dynamic load rating as track roller (radial)
C0r w	37500 N	Effective static load rating as track roller (radial)
Fr per	16200 N	Permissible dynamic radial load
F0r per	32500 N	Permissible static radial load
Cur w	4850 N	Fatigue limit load
nD G	4200 1/min	Speed (with continuous operation and grease lubrication)

NUTR15	15	35	19
NUTR1542	15	42	19
NUTR17	17	40	21
NUTR1747	17	47	21
NUTR20	20	47	25
NUTR2052	20	52	25
NUTR25	25	52	25
NUTR2562	25	62	25
NUTR30	30	62	29
NUTR3072	30	72	29
NUTR35	35	72	29
NUTR3580	35	80	29
NUTR40	40	80	32
NUTR4090	40	90	32
NUTR45	45	85	32
NUTR45100	45	100	32
NUTR50	50	90	32
NUTR50110	50	110	32

DKS Bearing Co.,ltd is the agent of INA bearing in china, and do the export business for several years, our prices are very competitive compare to other suppliers. now, we are listing the aboved models for your reference, there are tens of thousands of models for INA brand, but we can’t list all of them in our website because of limited space. We have large stocks to ship out soonest! When you have any demand of the bearing, please contact us soon!
