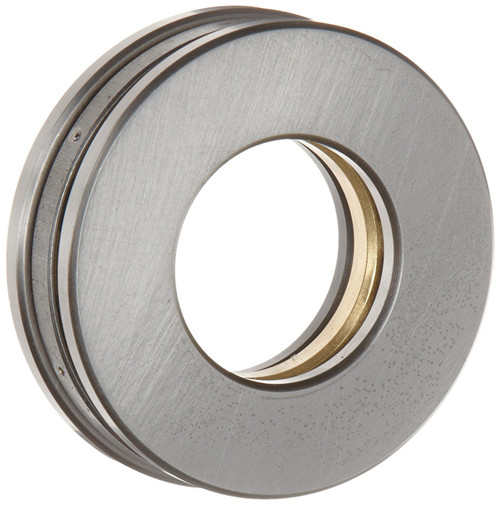

INA RT613 Thrust Cylindrical Roller Bearing
Brand:INA
Original:MEXICO
Type:Thrust Cylindrical Roller bearing
Item:INA RT613
Inner:44.5mm
Outner:85.725mm
Thickness:25.4mm
Weight:0.677kg
Description
This INA RT613 Thrust Cylindrical Roller Bearing , single direction, with a standard cage and medium cross section is suitable for applications that support axial loads in one direction. The standard cage has low axial section height, high load carrying capacity, and is guided as standard on the shaft, reducing friction, vibration, and noise.
Technical data of INA RT613 Thrust Cylindrical Roller Bearing
d 1 3/4 inch
d 44,45 mm
D 3,375 inch
D 85,725 mm
T 1
T25,4 mm
m 1,493 lbs Mass
m 0,677 kg Mass
Ca 33000 lbf Basic dynamic load rating, axial
Ca 147000 N Basic dynamic load rating, axial
C0a 74200 lbf Basic static load rating, axial
C0a 330000 N Basic static load rating, axial
nG 3500 1/min Limiting speed
Part INA cylindrical roller thrust bearing catalogue
|
|
|
|
|
|
||||||||||||||
| RT601 | 1 | 25,4 | 2,126 | 53,988 | 0,813 | 20,638 | |||||||||||||
| RT602 | 1/16 | 26,988 | 2,126 | 53,988 | 0,812 | 20,625 | |||||||||||||
| RT603 | 1 1/8 | 28,575 | 2,25 | 57,15 | 0,813 | 20,638 | |||||||||||||
| RT604 | 1 3/16 | 30,163 | 2,25 | 57,15 | 0,813 | 20,637 | |||||||||||||
| RT605 | 1 1/4 | 31,75 | 2,375 | 60,325 | 0,813 | 20,637 | |||||||||||||
| RT606 | 1 5/16 | 33,338 | 2,375 | 60,325 | 0,813 | 20,637 | |||||||||||||
| RT607 | 1 3/8 | 34,925 | 2,875 | 73,025 | 0,813 | 20,637 | |||||||||||||
| RT608 | 1 7/16 | 36,513 | 2,875 | 73,025 | 0,812 | 20,625 | |||||||||||||
| RT609 | 1 1/2 | 38,1 | 3 | 76,2 | 0,813 | 20,637 | |||||||||||||
| RT610 | 1 9/16 | 39,688 | 3 | 76,2 | 0,812 | 20,625 | |||||||||||||
| RT611 | 1 5/8 | 41,275 | 3,25 | 82,55 | 1 | 25,4 | |||||||||||||
| RT612 | 1 11/16 | 42,863 | 3,25 | 82,55 | 1 | 25,4 | |||||||||||||
| RT613 | 1 3/4 | 44,45 | 3,375 | 85,725 | 1 | 25,4 | |||||||||||||
| RT616 | 1 15/16 | 49,213 | 3,5 | 88,9 | 1 | 25,4 | |||||||||||||
| RT617 | 2 | 50,8 | 3,625 | 92,075 | 1 | 25,4 | |||||||||||||
| RT618 | 2 1/8 | 53,975 | 3,75 | 95,25 | 1 | 35,4 | |||||||||||||
| RT619 | 2 1/4 | 57,15 | 3,875 | 98,425 | 1 | 25,4 | |||||||||||||
| RT620 | 2 3/8 | 60,325 | 4 | 101,6 | 1 | 25,4 | |||||||||||||
| RT621 | 2 1/2 | 63,5 | 4,126 | 104,803 | 1 | 25,4 | |||||||||||||
| RT622 | 2 5/8 | 66,675 | 4,343 | 110,3 | 1 | 25,4 | |||||||||||||
|
|
|
|
|
|
||||||||||||||
| RT623 | 2 3/4 | 69,85 | 4,468 | 113,475 | 1 | 25,4 | |||||||||||||
| RT624 | 3 | 76,2 | 4,719 | 119,87 | 1 | 25,4 | |||||||||||||
| RT625 | 3 1/4 | 82,55 | 4,968 | 126,187 | 1 | 25,4 | |||||||||||||
| RT626 | 3 1/2 | 88,9 | 5,22 | 132,575 | 1 | 25,4 |
