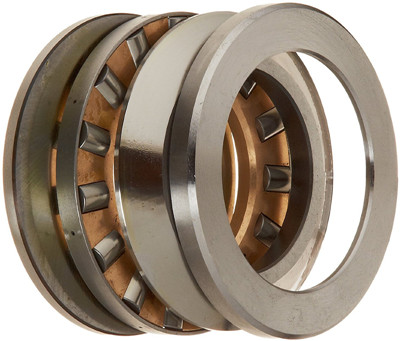

INA RTW626 Thrust Cylindrical Roller Bearing

Brand:INA

Original:MEXICO

Type:Thrust Cylindrical Roller bearing

Item:INA RTW626

Inner:88.9mm

Outner:138.875mm

Thickness:33.338mm

Weight:1.766kg

INA BEARING

Description

This INA RTW626 Thrust Cylindrical Roller Bearing , single direction, with a standard cage and medium cross section is suitable for applications that support axial loads in one direction. The standard cage has low axial section height, high load carrying capacity, and is guided as standard on the shaft, reducing friction, vibration, and noise.

Technical data of INA RTW626 Thrust Cylindrical Roller Bearing

d 3 1/2 inch

d 88,9 mm

D 5,468 inch

D 138,875 mm

T 1,313 inch

T 33,338 mm

m 3,894 lbs Mass

m 1,766 kg Mass

Ca 48000 lbf Basic dynamic load rating, axial

Ca 214000 N Basic dynamic load rating, axial

C0a 143000 lbf Basic static load rating, axial

C0a 640000 N Basic static load rating, axial

nG 2100 1/min Limiting speed

Part INA cylindrical roller thrust bearing catalogue

	d	d	D	D	T	T
	inch	mm	inch	mm	inch	mm
RTW601	1	25,4	2,251	57,168	1,062	26,975
RTW602	1/16	26,924	2,251	57,168	1,062	26,975
RTW604	1 3/16	30,163	2,375	60,325	1,062	26,975
RTW605	1 1/4	31,75	2,5	63,5	1,063	26,988
RTW607	1 3/8	34,925	3	76,2	1,062	26,975
RTW609	1 1/2	38,1	3,125	79,375	1,062	26,975
RTW610	1 9/16	39,688	3,125	79,375	1,062	26,975
RTW611	1 5/8	41,275	3,375	85,725	1,312	33,325
RTW613	1 3/4	44,45	3,5	88,9	1,312	33,325
RTW614	1 13/16	46,038	3,5	88,9	1,312	33,325
RTW616	1 15/16	49,213	3,625	92,075	1,312	33,325
RTW617	2	50,8	3,75	95,25	1,312	33,325
RTW619	2 1/4	57,15	4	101,6	1,312	33,325
RTW621	2 1/2	63,5	4,25	107,95	1,312	33,325
RTW622	2 5/8	66,675	4,53	115,062	1,312	33,325
RTW623	2 3/4	69,85	4,655	118,237	1,313	33,338
RTW626	3 1/2	88,9	5,468	138,875	1,313	33,338
