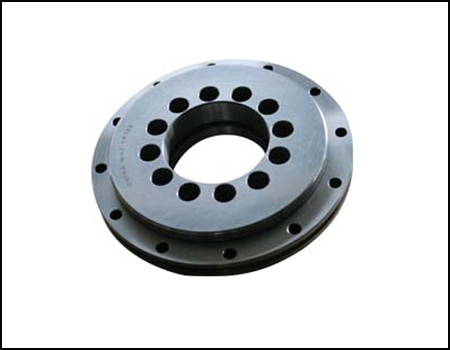

INA YRT50 Rotary table bearing
Brand:INA
Original:
Type:Thrust ball bearing
Item:YRT50
Inner:50mm
Outner:126mm
Thickness:30mm
Weight:
Description
INA YRT50 Rotary table bearings are ready-to-fit high precision bearings for high precision applications with combined loads. They can support radial loads and axial loads from both sides as well as tilting moments and are particularly suitable for bearing arrangements with high requirements for running accuracy, for example in rotary tables, face plates, milling heads and reversible clamps.
Product data of INA Rotary table bearings YRT50
| d | 50 mm | |
| D | 126 mm | |
| H | 30 mm | |
| 10 | Number of fixing holes in inner ring | |
| Attention! | ||
| For fixing holes in the adjacent construction. | ||
| Note the pitch of the bearing holes. | ||
| 12 | Number of fixing holes in outer ring | |
| Attention! | ||
| For fixing holes in the adjacent construction. | ||
| Note the pitch of the bearing holes. | ||
| 2 | Number of retaining screws | |
| 1) | Retaining screws | |
| a | – | Fixing holes in inner ring |
| C | 10 mm | |
| D1 max | 105 mm | |
| d1 | 5,6 mm | Fixing holes in inner ring |
| d2 | – | Fixing holes in inner ring |
| d3 | 5,6 mm | Fixing holes in outer ring |
| G | – | Extraction thread |
| H1 | 20 mm | |
| H2 | 10 mm | |
| J | 63 mm | Fixing holes in inner ring |
| J1 | 116 mm | Fixing holes in outer ring |
| t | 12 X 30° | Quantity of pitches X angle of pitches |
| Including retaining screws and extraction threads | ||
| m | 1,6 kg | Mass |
| MA | 8,5 Nm | Screw tightening torque |
| Tightening torque for screws to DIN 912, grade 10.9. | ||
| Ca | 56000 N | Basic dynamic load rating, axial |
| C0a | 280000 N | Basic static load rating, axial |
| Cr | 28500 N | Basic dynamic load rating, radial |
| C0r | 49500 N | Basic static load rating, radial |
| nG | 440 1/min | Limiting speed |
| For high operating durations or continuous operation, please contact us. | ||
| MRL | 2,5 Nm | Bearing frictional torque |
| caL | 1300 N/µm | Axial rigidity of bearing position |
| Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. | ||
| crL | 1100 N/µm | Radial rigidity of bearing position |
| Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. | ||
| ckL | 1250 Nm/mrad | Tilting rigidity of the bearing position |
| Rigidity values taking account of the rolling element set, rigidity of the bearing rings and the screw connections. | ||
| caL | 6200 N/µm | Axial rigidity of rolling element set |
| crL | 1500 N/µm | Radial rigidity of rolling element set |
| ckL | 5900 Nm/mrad | Tilting rigidity of rolling element set |
INA Rotary table bearings YRT series we can supply
|
P/N |
d |
D |
H |
|
YRT50 |
50 |
126 |
30 |
|
YRT80-TV |
80 |
146 |
35 |
|
YRT100 |
100 |
185 |
38 |
|
YRT120 |
120 |
210 |
40 |
|
YRT150 |
150 |
240 |
40 |
|
YRT180 |
180 |
280 |
43 |
|
YRT200 |
200 |
300 |
45 |
|
YRT260 |
260 |
385 |
55 |
|
YRT325 |
325 |
450 |
60 |
|
YRT395 |
395 |
525 |
65 |
|
YRT460 |
460 |
600 |
70 |
|
YRT580 |
580 |
750 |
90 |
|
YRT650 |
650 |
870 |
122 |
|
YRT850 |
850 |
1095 |
124 |
|
YRT950 |
950 |
1200 |
132 |
|
YRT1030 |
1030 |
1300 |
145 |
