Description

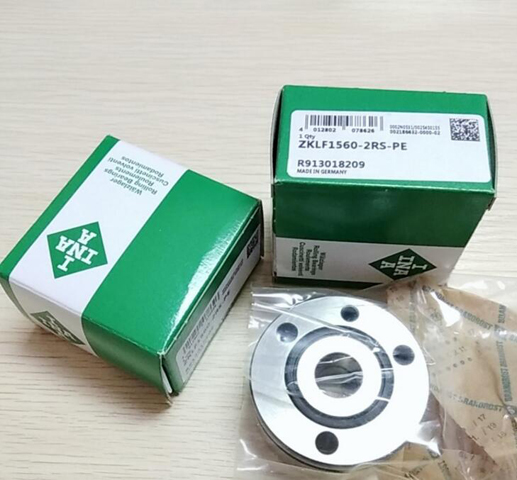

INA ZKLF1560-2RS angular contact ball bearings
Detailed data of INA ZKLF1560-2RS is shown as follow
| d | 15 mm | Tolerance: 0/-0,01 |
| D | 60 mm | Tolerance: 0/-0,013 |
| B | 25 mm | Tolerance: 0/-0,25 |
| M6 | Threaded connector for lubrication | |
| 60 ° | Contact angle | |
| n x t | 3 x 120° | Pitch |
| r1 min | 0,6 mm | |
| rmin | 0,3 mm | |
| t1 | 0,1 mm | |
| m | 0,43 kg | ≈ Mass |
| d | D | B | |
| mm | mm | mm | |
| ZKLF1255-2RS-PE | 12 | 55 | 25 |
| ZKLF1560-2RS-PE | 15 | 60 | 25 |
| ZKLF1762-2RS-PE | 17 | 62 | 25 |
| ZKLF2068-2RS-PE | 20 | 68 | 28 |
| ZKLF2575-2RS-PE | 25 | 75 | 28 |
| ZKLF3080-2RS-PE | 30 | 80 | 28 |
| ZKLF3590-2RS-PE | 35 | 90 | 34 |
| ZKLF40100-2RS-PE | 40 | 100 | 34 |
| ZKLF50115-2RS-PE | 50 | 115 | 34 |
We are professional supplier of bearings, if you have any inquiry of INA Bearings or other demand about bearings please contact me freely, we will support in the first time. More information please contact us.
