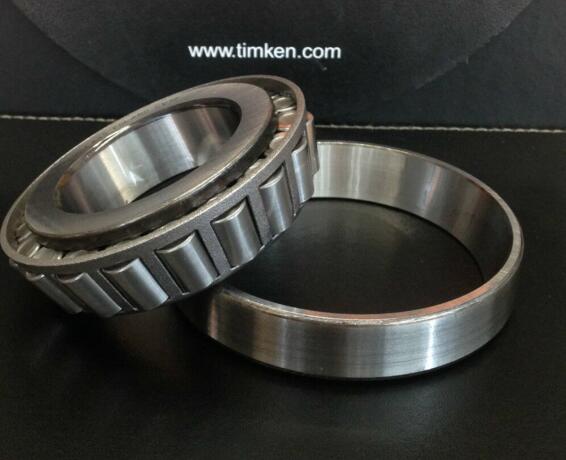

JM736149/JM736110 TIMKEN Tapered roller bearing
TIMKEN is a well-known manufacturer of Tapered roller bearing.Tapered roller bearing are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling.
Detailed data of TIMKEN JM736149/JM736110 is shown as follow
| Bearing part | JM736149/JM736110 |
|---|---|
| d(mm) Inside Diameter |
180 |
| D Outside Diameter |
250 |
| B Bearing width |
47 |
| Belong | Tapered roller bearing |
| Belong | Tapered roller bearing |
| C1 | 401000 |
| e | 0.48 |
| Y | 1.25 |
| C90 | 104000 |
| Ca90 | 85500 |
| K | 1.22 |
| C0 | 786000 |
| B | 45 |
| C | 37 |
| a(3) | 8.9 |
| Shaft max shaft fillet radius R(4） | 3 |
| Shaft backing shoulder dia.da | 190.5 |
| Shaft backing shoulder dia.db | 196 |
| Housing backing shoulder dia. r(4) | 2.5 |
| Housing backing shoulder dia.Da | 242.5 |
| Housing backing shoulder dia.Da | 232 |
| Cage Aa | 3.4 |
| Cage Ab | 4.1 |
| G1 | 589 |
| G2 | 128 |
| Cg | 0.1227 |
| MASS(KG) | 6.64 |
AMC Bearing Co.,ltd is the agent of TIMKEN bearing in china, and do the export business for several years, our prices are very competitive compare to other suppliers. now, we are listing the aboved models for your reference, there are tens of thousands of models for TIMKEN brand, but we can’t list all of them in our website because of limited space. We have large stocks to ship out soonest! Our warehouses are set up in Hong Kong and Singapore and can be shipped worldwide.When you have any demand of the bearing, please contact us soon!
