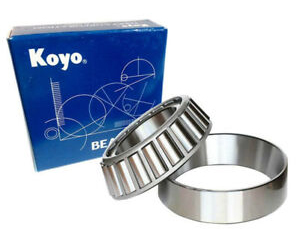

Koyo 32310JR Tapered Roller Bearing
Brand:KOYO
Original:JAPAN
Type:Tapered roller bearing
Item:Koyo 32310JR
Inner:50MM
Outner:110MM
Thickness:40MM
Weight:1.88KG
Description
This roller bearing is designed so that the apex of the tapered face on the raceway face of the cone cup intersects with a single point on the bearing center line. Suitable for applications with heavy load and impact load. It was divided into single- row, double- row and four -row bearings.
The tech for KOYO 32310JR
| SD | 50 | mm |
| Inside Diameter | ||
| D | 110 | mm |
| Outside Diameter | ||
| T | 42.25 | mm |
| Width | ||
| B | 40 | mm |
| Width | ||
| C | 33 | mm |
| Width | ||
| R | 2.5 | mm |
| Chamfer Dimension | ||
| R1 | 2 | mm |
| Chamfer Dimension | ||
| CR1 | 176000 | N |
| Basic Dynamic Load Ratings | ||
| COR1 | 220000 | N |
| Basic Static Load Ratings | ||
| CR2 | 17900 | kgf |
| Basic Dynamic Load Ratings | ||
| COR2 | 22400 | kgf |
| Basic Static Load Ratings | ||
| LG | 3600 | rpm |
| Limiting Speed Grease | ||
| LO | 4800 | rpm |
| Limiting Speed Oil | ||
| ISO | 2FD | |
| ISO355 Dimension Series approx. | ||
| DA1 | 68 | mm |
| Abutment and Fillet Dimensions min. | ||
| MASS | 1.88 | kg |
