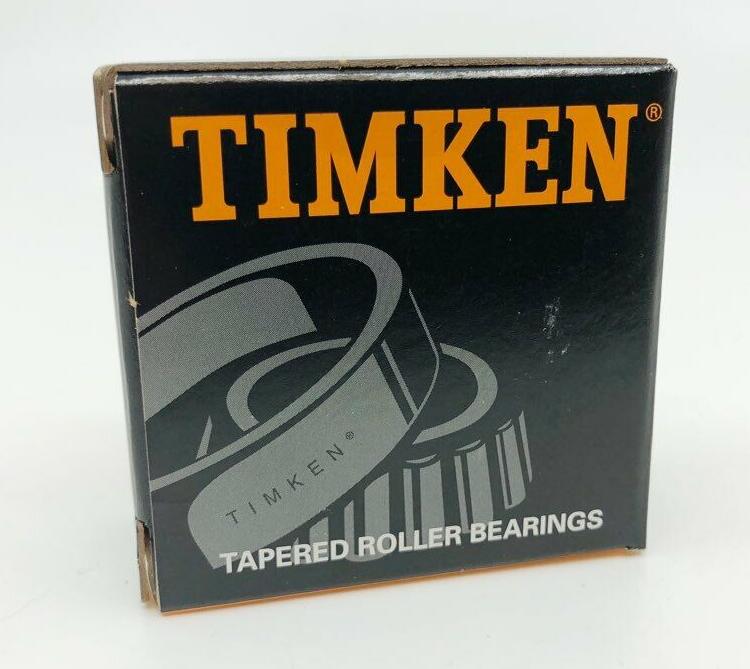

M252330/M252310 TIMKEN Tapered roller bearing
TIMKEN is a well-known manufacturer of Tapered roller bearing.Tapered roller bearing are used in a variety of applications. Examples include mining, petroleum production, power generation, power transmission, cement processing, aggregate crushing, and metal recycling.
Detailed data of TIMKEN M252330-M252310 is shown as follow
d – 234,95 mm
D – 381 mm
T – 74,612 mm
B – 74,612 mm
C – 57,15 mm
R – 6,3 mm
r – 3,3 mm
a – -6,6 mm
Da – 363,5 mm
db – 271 mm
da – 261 mm
Db – 356 mm
Aa – 8,3 mm
Ab – 3,5 mm
Weight – 33,89 Kg
Basic static load rating (C0) – 2030 kN
Factor (G1) – 1839,2
Factor (G2) – 226,1
Factor (Cg) – 0,0475
Factor (K) – 1,76
Basic dynamic load rating (C90) – 255
Basic dynamic load rating (Ca90) – 145
Basic dynamic load rating (C1) – 982 kN
Calculation factor (e) – 0,33
Calculation factor (Y) – 1,8
AMC Bearing Co.,ltd is the agent of TIMKEN bearing in china, and do the export business for several years, our prices are very competitive compare to other suppliers. now, we are listing the aboved models for your reference, there are tens of thousands of models for TIMKEN brand, but we can’t list all of them in our website because of limited space. We have large stocks to ship out soonest! Our warehouses are set up in Hong Kong and Singapore and can be shipped worldwide.When you have any demand of the bearing, please contact us soon!
