Description

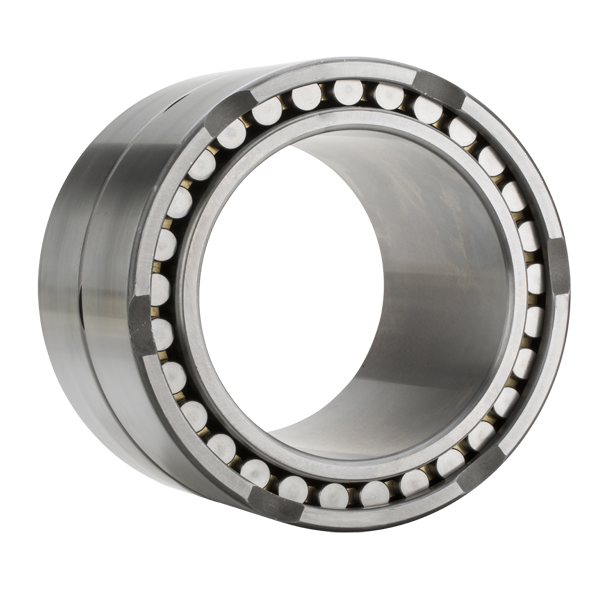

NTN Cylindrical Roller Bearing 4R16426
Technical Specifications
| Type | Cylindrical Roller Bearing |
| Bore Type | Round |
| Material | Through Hardened Steel |
| Cage Material | Pin Type Cage |
| Precision | ISO Class 0(RBEC 1) |
| Configuration | Four |
| Tolerance | ISO Class 0 (RBEC 1) |
| Oil Hole | w/o Oil Hole |
| Radial Internal Clearance | CN |
| Static Load Rating | 1500000 lbf
66500000 N 66500.00 kN |
| Dynamic Load Rating | 4410000 lbf
19600000 N 19600.00 kN |
| Enclosure | Open |
| Operating Temperature Range | -40 to 250 ºF
-40 to 120 ºC |
Dimensional Specifications
| d | 32.2835 in
820.000 mm |
| D | 44.4882 in
1130.000 mm |
| B1 | 31.4961 in
800.000 mm |
| C1 | 32.2835 in
820.000 mm |
| Fw | 32.2835 in
820.000 mm |
| r | 0.2953 in
7.500 mm |
| R1 | 0.2953 in
7.500 mm |
We are professional supplier of bearings, if you have any inquiry of NTN Bearings or other demand about bearings please contact me freely, we will support in the first time. More information please contact us.
