Description

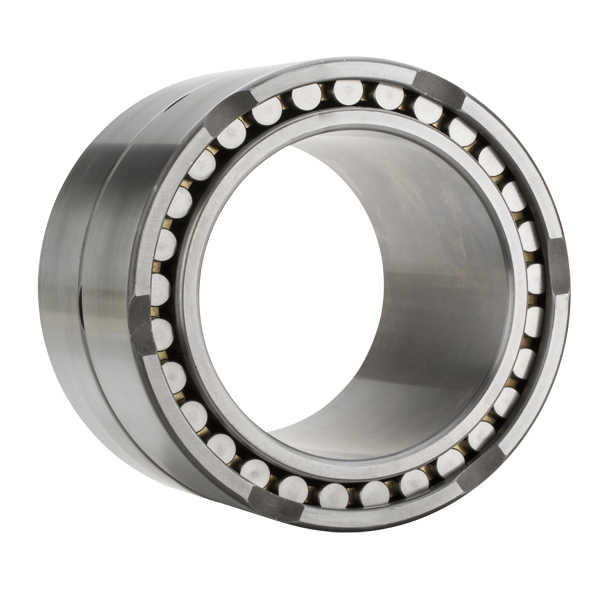

NTN Four-Row Cylindrical Roller Bearing 4R2628
Technical Specifications
| Type | Cylindrical Roller Bearing |
| Bore Type | Round |
| Material | Through Hardened Steel |
| Cage Material | Pin Type Cage |
| Precision | ISO Class 0(RBEC 1) |
| Configuration | Four |
| Tolerance | ISO Class 0 (RBEC 1) |
| Oil Hole | w/o Oil Hole |
| Radial Internal Clearance | CN |
| Static Load Rating | 215000 lbf
955000 N 955.00 kN |
| Dynamic Load Rating | 110000 lbf
490000 N 490.00 kN |
| Enclosure | Open |
| Weight | 26.676 lb
12.100 kg |
| Operating Temperature Range | -40 to 250 ºF
-40 to 120 ºC |

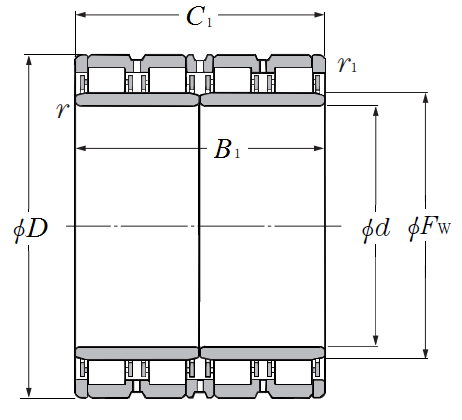

Dimensional Specifications
| d | 5.1181 in
130.000 mm |
| D | 7.8740 in
200.000 mm |
| B1 | 4.0945 in
104.000 mm |
| C1 | 4.0945 in
104.000 mm |
| Fw | 5.9055 in
150.000 mm |
| r | 0.0984 in
2.500 mm |
| R1 | 0.0984 in
2.500 mm |
