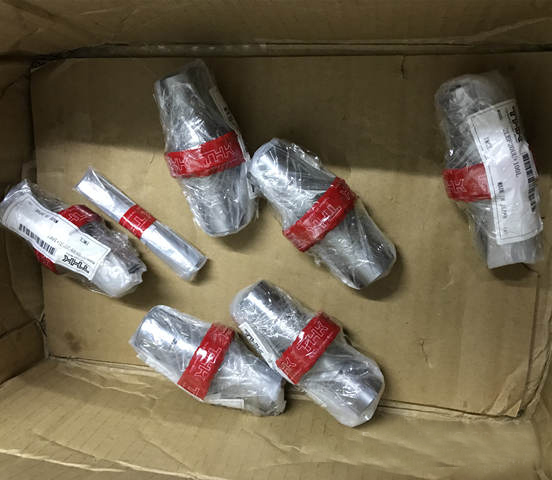

THK Ball Spline 2LBF20UU + 100L
| odel No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | |||||||
| Radial | |||||||||||
| Height M |
Width W |
Length L |
B | C | S | H | Pitch F |
d1xd2xh | Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
| HRW17CA | 17 | 60 | 50.8 | 53 | 26 | M4 | 3.3 | 40 | 4.5×7.5×5.3 | 5.53 | 9.1 |
| HRW21CA | 21 | 68 | 58.8 | 60 | 29 | M5 | 4.4 | 50 | 4.5×7.5×5.3 | 8.02 | 12.9 |
| HRW27CA | 27 | 80 | 72.8 | 70 | 40 | M6 | 5.3 | 60 | 4.5×7.5×5.3 | 14.2 | 21.6 |
| HRW35CA | 35 | 120 | 106.6 | 107 | 60 | M8 | 6.8 | 80 | 7x11x9 | 33.8 | 48.6 |
| HRW50CA | 50 | 162 | 140.5 | 144 | 80 | M10 | 8.6 | 80 | 9x14x12 | 62.4 | 86.3 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
