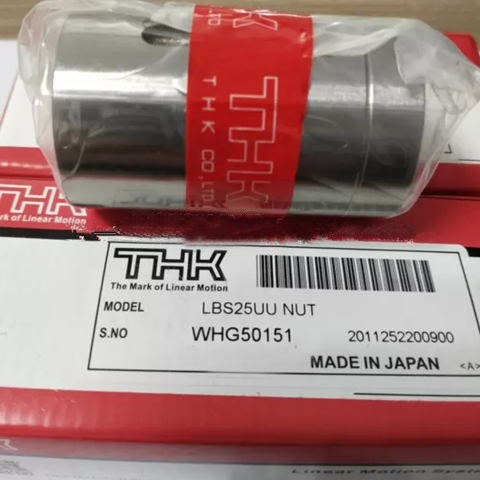

THK Ball Spline LBS25UU
Country: Japan
BRAND: THK
Model number:LBS25UU
Stock: in stock
Features:advanced high strength
Accuracy: Please consult customer service for details Certification
Standard: please consult customer service for details
Country: Japan
BRAND: THK
Model number:LBS25UU
Stock: in stock
Features:advanced high strength
Accuracy: Please consult customer service for details Certification
Standard: please consult customer service for details
THK Ball Spline LBS25UU
Code | D | L | b | t | l | r | d0 | Cr N*m | C0r N*m | C kN | C0 kN | Nut weight kg |
Spline weight kg |
LBS 15 | 23 | 40 | 3.5 | 2 | 20 | 0.5 | 2 | 30.4 | 74.5 | 4.4 | 8.4 | 0.06 | 1.0 |
LBS 20 | 30 | 50 | 4 | 2.5 | 26 | 0.5 | 2 | 74.5 | 160 | 7.8 | 14.9 | 0.14 | 1.8 |
LBS 25 | 37 | 60 | 5 | 3 | 33 | 0.5 | 2 | 154 | 307 | 13 | 23.5 | 0.25 | 2.7 |
LBS 30 | 45 | 70 | 7 | 4 | 41 | 1 | 3 | 273 | 538 | 19.3 | 33.8 | 0.44 | 3.8 |
LBS 40 | 60 | 90 | 10 | 4.5 | 55 | 1 | 3 | 599 | 1140 | 31.9 | 53.4 | 1.0 | 6.8 |
LBS 50 | 75 | 100 | 15 | 5 | 60 | 1.5 | 4 | 1100 | 1940 | 46.6 | 73 | 1.7 | 10.6 |
LBS 70 | 100 | 110 | 18 | 6 | 68 | 2 | 4 | 2190 | 3800 | 66.4 | 102 | 3.1 | 21.3 |
LBS 85 | 120 | 140 | 20 | 7 | 80 | 2.5 | 5 | 3620 | 6360 | 90.5 | 141 | 5.5 | 32.0 |
LBS 100 | 140 | 160 | 28 | 9 | 93 | 3 | 5 | 5910 | 12600 | 126 | 237 | 9.5 | 45.0 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
