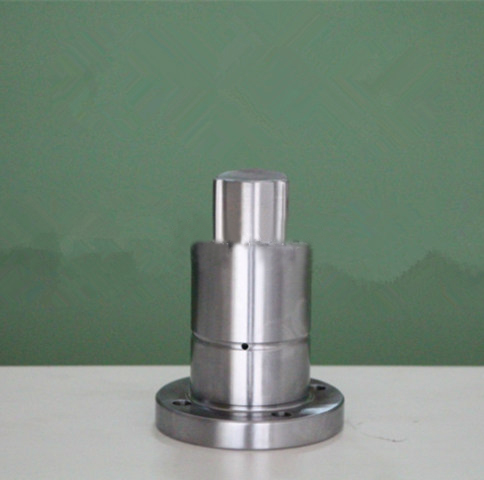

THK Ball Spline LBS40UU+120L
| Code | D | L | b | t | l | r | d0 | Cr N*m | C0r N*m | C kN | C0 kN | Nut weight kg |
Spline weight kg |
| LBS 15 | 23 | 40 | 3.5 | 2 | 20 | 0.5 | 2 | 30.4 | 74.5 | 4.4 | 8.4 | 0.06 | 1.0 |
| LBS 20 | 30 | 50 | 4 | 2.5 | 26 | 0.5 | 2 | 74.5 | 160 | 7.8 | 14.9 | 0.14 | 1.8 |
| LBS 25 | 37 | 60 | 5 | 3 | 33 | 0.5 | 2 | 154 | 307 | 13 | 23.5 | 0.25 | 2.7 |
| LBS 30 | 45 | 70 | 7 | 4 | 41 | 1 | 3 | 273 | 538 | 19.3 | 33.8 | 0.44 | 3.8 |
| LBS 40 | 60 | 90 | 10 | 4.5 | 55 | 1 | 3 | 599 | 1140 | 31.9 | 53.4 | 1.0 | 6.8 |
| LBS 50 | 75 | 100 | 15 | 5 | 60 | 1.5 | 4 | 1100 | 1940 | 46.6 | 73 | 1.7 | 10.6 |
| LBS 70 | 100 | 110 | 18 | 6 | 68 | 2 | 4 | 2190 | 3800 | 66.4 | 102 | 3.1 | 21.3 |
| LBS 85 | 120 | 140 | 20 | 7 | 80 | 2.5 | 5 | 3620 | 6360 | 90.5 | 141 | 5.5 | 32.0 |
| LBS 100 | 140 | 160 | 28 | 9 | 93 | 3 | 5 | 5910 | 12600 | 126 | 237 | 9.5 | 45.0 |
