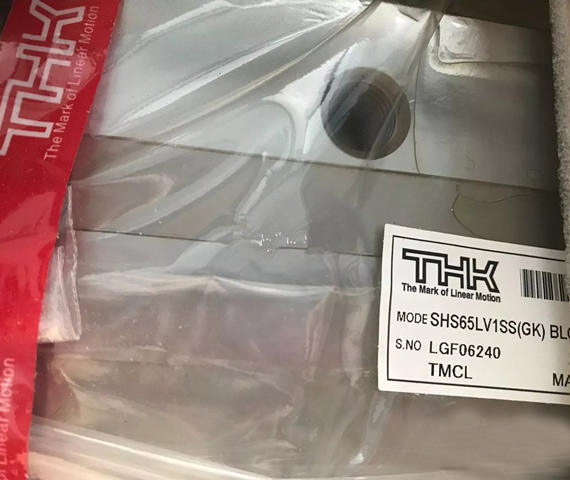

THK BLOCK SHS65LV1SS(GK)
Country: Japan
BRAND: THK
Model number：SHS65LV1SS
Stock: in stock
Features:advanced high strength
Accuracy: Please consult customer service for details Certification
Standard: please consult customer service for details
Description
THK BLOCK SHS65LV1SS(GK)
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| Height M |
Width W |
Length L |
B | C | S x l | Pitch F |
d1xd2xh | Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| SHS15LV | 24 | 34 | 79.4 | 26 | 26 | M4 x 4 | 60 | 4.5×7.5×5.3 | 17.2 | 31.9 |
| SHS20LV | 30 | 44 | 98 | 32 | 50 | M5 x 5 | 60 | 6×9.5×8.5 | 28.1 | 50.3 |
| SHS25LV | 36 | 48 | 109 | 35 | 50 | M6 x 6.5 | 60 | 7x11x9 | 36.8 | 64.7 |
| SHS30LV | 42 | 60 | 131 | 40 | 60 | M8 x 8 | 80 | 9x14x12 | 54.2 | 88.8 |
| SHS35LV | 48 | 70 | 152 | 50 | 72 | M8 x 10 | 80 | 9x14x12 | 72.9 | 127 |
| SHS45LV | 60 | 86 | 174 | 60 | 80 | M10 x 15 | 105 | 14x20x17 | 100 | 166 |
| SHS55LV | 70 | 100 | 213 | 75 | 95 | M12 x 15 | 120 | 16x23x20 | 161 | 259 |
| SHS65LV | 90 | 126 | 272 | 76 | 120 | M16 x 20 | 150 | 18x26x22 | 253 | 408 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
