Description
Since model GSR has a low center of gravity structure with a low overall height, the machine can be downsized.* Model GSR cannot be used in single-axis applications.

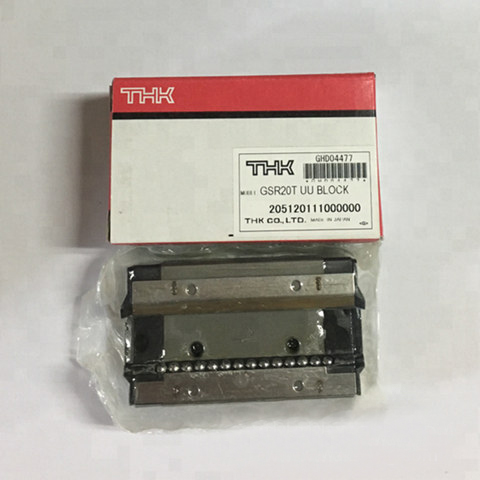

The tech specs for THK GSR20T UU BLOCK
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||||||||
| Radial | ||||||||||||||||
| Height M |
Width W |
Length L |
B1 | B | C | S x l | Grease nipple |
Width W1 |
W2 | W4 | Height M1 |
Pitch F |
d1xd2xh | Dynamic rating C |
Static rating C0 |
|
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | ||
| GSR15T | 20 | 32 | 59.8 | 5 | 15 | 26 | M4x7 | PB107 | 15 | 25 | 7.5 | 11.5 | 60 | 4.5×7.5×5.3 | 6.51 | 6.77 |
| GSR20T | 24 | 43 | 74 | 7 | 20 | 30 | M5x8 | B-M6F | 20 | 33 | 10 | 13 | 60 | 6×9.5×8.5 | 10.5 | 10.6 |
| GSR25T | 30 | 50 | 88 | 7 | 23 | 40 | M6x10 | B-M6F | 23 | 38 | 11.5 | 16.5 | 60 | 7x11x9 | 15.5 | 15.2 |
| GSR30T | 33 | 57 | 103 | 8 | 26 | 45 | M8x12 | B-M6F | 28 | 44.5 | 14 | 19 | 80 | 9x14x12 | 27.8 | 29.9 |
| GSR35T | 38 | 68 | 117 | 9 | 32 | 50 | M8x15 | B-M6F | 34 | 54 | 17 | 22 | 80 | 11×17.5×14 | 37 | 39.1 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
