Description

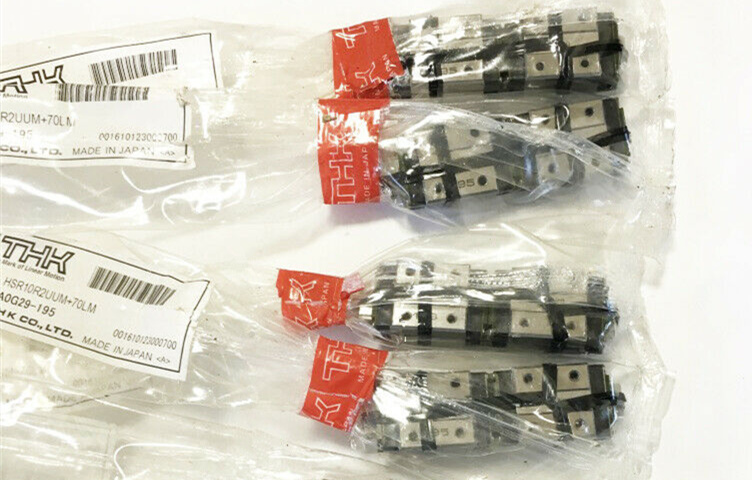

THK HSR10R2UUM+345LM
| Model No. | Dimensions | Basic load rating | ||||||||
| Outer | Block | Rail | Radial | |||||||
| Height M |
Width W |
Length L |
B | C | S x l | Pitch F |
d1xd2xh | Dynamic C | Static C0 | |
| kN | kN | |||||||||
| HSR8R | 11 | 16 | 24 | 10 | 10 | M2 x 2.5 | 20 | 2.4×4.2×2.3 | 1.08 | 2.16 |
| HSR10R | 13 | 20 | 31 | 13 | 12 | M2.6 x 2.5 | 25 | 3.5x6x3.3 | 1.96 | 3.82 |
| HSR12R | 20 | 27 | 45 | 15 | 15 | M4 x 15 | 40 | 3.5x6x4.5 | 4.70 | 8.53 |
units: mm| Model No. | HSR 8 | HSR 10 | HSR 12 |
|---|---|---|---|
| LM rail standard length (L0) |
35 55 75 95 115 175 275 |
45 95 195 220 345 470 |
110 150 190 350 390 550 670 |
| Standard pitch F | 20 | 25 | 40 |
| G | 7.5 | 10 | 15 |
| Max length | 975 | 995 | 1240 |
units: mmAs a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
