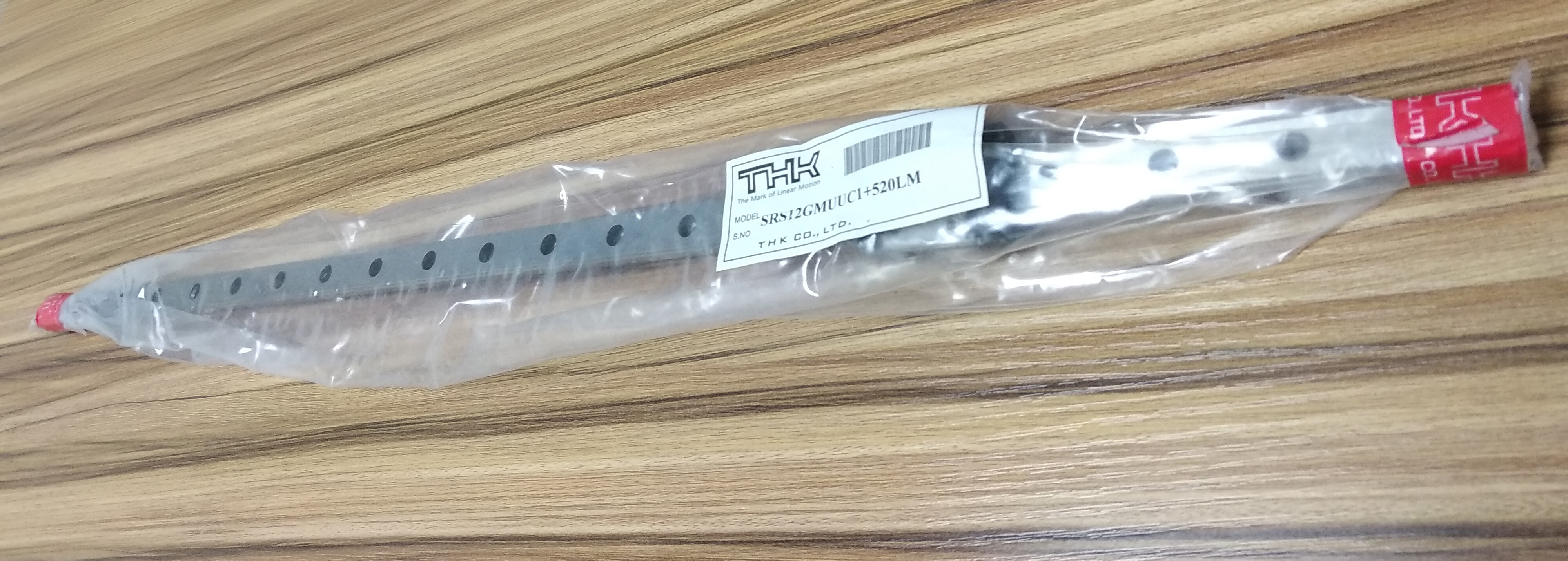

THK Linear Bearing SRS12GMUUC1+520LM
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| HeightM | WidthW | LengthL | B | C | S x l | PitchF | d1xd2xh | Dynamicrating C | StaticratingC0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| SRS7GM | 8 | 17 | 23.4 | 12 | 8 | M2 x 2.3 | 15 | 2.4×4.2×2.3 | 1.16 | 1.54 |
| SRS9XGM | 10 | 20 | 30.8 | 15 | 10 | M3 x 2.8 | 20 | 3.5x6x3.3 | 2.22 | 3.06 |
| SRS12GM | 13 | 27 | 34.4 | 20 | 15 | M3 x 3.2 | 25 | 3.5x6x4.5 | 3.36 | 3.55 |
| SRS15GM | 16 | 32 | 43 | 25 | 20 | M3 x 3.5 | 40 | 3.5x6x4.5 | 5.59 | 5.72 |
| Model No. | SRS7 | SRS7W | SRS9 | SRS9W | SRS12 | SRS12W | SRS15 | SRS15W |
| LM
railstandardlength (L0) |
40 5570
85100 115130 |
50 80
110 140 170200 260290 |
55 7595
115135 155175 195275 375 |
50 80110
140170 200260 290320 |
70 95
120145 170195 220245 270320 370470 570 |
70 110150
190230 270310 390470 550 |
70 110
150190 230270 310350 390430 470550 670870 |
110
150190 230270 310430 550670 790 |
| Standard pitch F | 15 | 30 | 20 | 30 | 25 | 40 | 40 | 40 |
| G | 5 | 10 | 7.5 | 10 | 10 | 15 | 15 | 15 |
| Max length | 480 | 480 | 1240 | 1430 | 1430 | 1600 | 1600 | 1800 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
