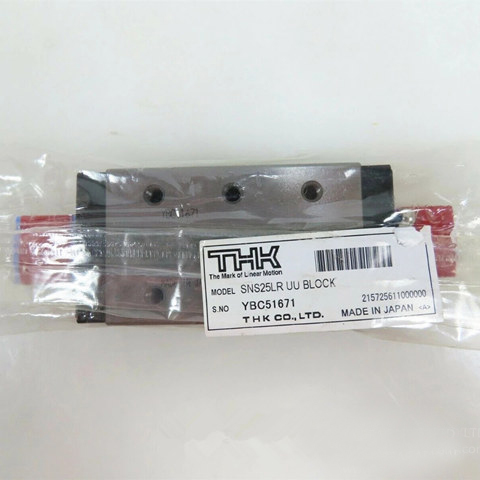

THK Linear Guideway block SNS25LR
| Model No. | SNS25LR | |
| Main dimensions | M | 31 |
| W | 50 | |
| L | 102.8 | |
| LM block size | B | 32 |
| C | 50 | |
| S×L | M6×8 | |
| L1 | 81.6 | |
| T | 9.7 | |
| K | 25.5 | |
| N | 7 | |
| f0 | 6 | |
| E | 12 | |
| e0 | 4 | |
| D0 | 3.9 | |
| Weight | LM Block KG | 0.6 |
| LM Rail KG/M | 3.1 | |
| Basic rated load | Dynamic rating(C) kN | 44 |
| Static rating(Co) kN | 78 | |
| LM Rail size | W1 | 25 |
| W2 | 12.5 | |
| M1 | 17 | |
| F | 40 | |
| d1×d2×h | 6×9.5×8.5 | |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. If you have any demand, you can directly contact us.
