Description

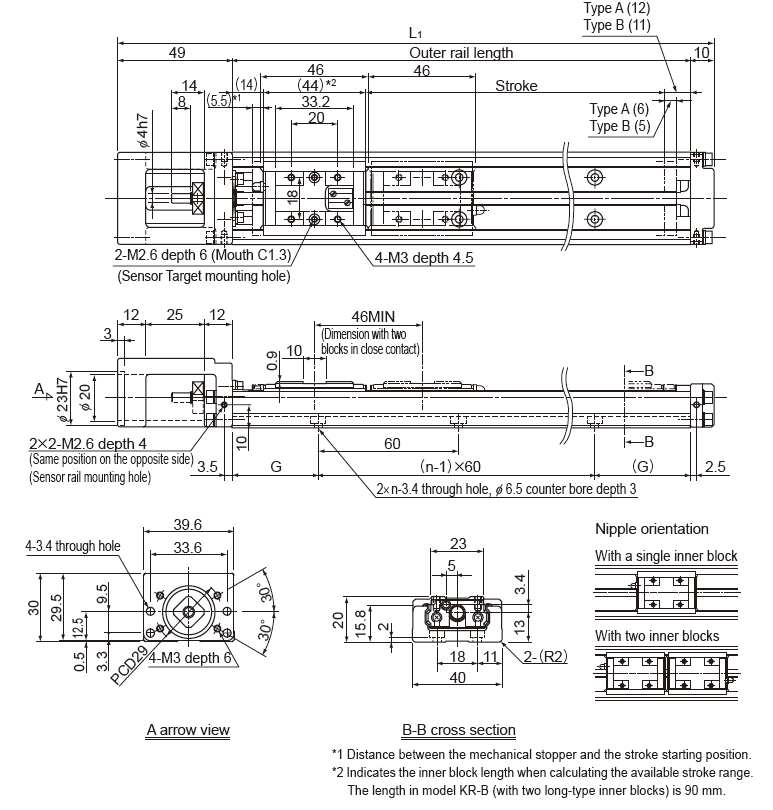

THK Linear Motion Guide KR2001A+100LP0-100B
| del No. | Ball Screw Lead | Stroke (stroke between mechanical stoppers) |
Outer rail length | Overall length L | G | n | Maximum speed | LM guide unit load rating | Ball screw unit load rating | Bearing unit load rating (fixed side) | Permissible input torque | |||||||
| Dynamic Ca |
Static C0a |
Dynamic Ca |
Static C0 |
Dynamic Ca |
Static P0a |
|||||||||||||
| Type A | Type B | Precision grade | Normal grade | per block | per block | Precision grade | Normal grade | Precision grade | Normal grade | Axial direction | ||||||||
| mm | mm | mm | mm | mm | mm | mm/s | mm/s | N | N | N | N | N | N | N | N | N-m | ||
| KR20 | 01 | 30 (41.5) | – | 100 | 159 | 20 | 2 | 100 | 100 | 3590 | 6300 | 660 | 660 | 1170 | 1170 | 1000 | 1240 | 0.207 |
| 80 (91.5) | 35(45.5) | 150 | 209 | 15 | 3 | |||||||||||||
| 130 (141.5) | 85(95.5) | 200 | 259 | 40 | 3 | |||||||||||||
| 06 | 30 (41.5) | – | 100 | 159 | 20 | 2 | 600 | 600 | 1060 | 860 | 1600 | 1450 | ||||||
| 80 (91.5) | 35(45.5) | 150 | 209 | 15 | 3 | |||||||||||||
| 130 (141.5) | 85(95.5) | 200 | 259 | 40 | 3 | |||||||||||||
