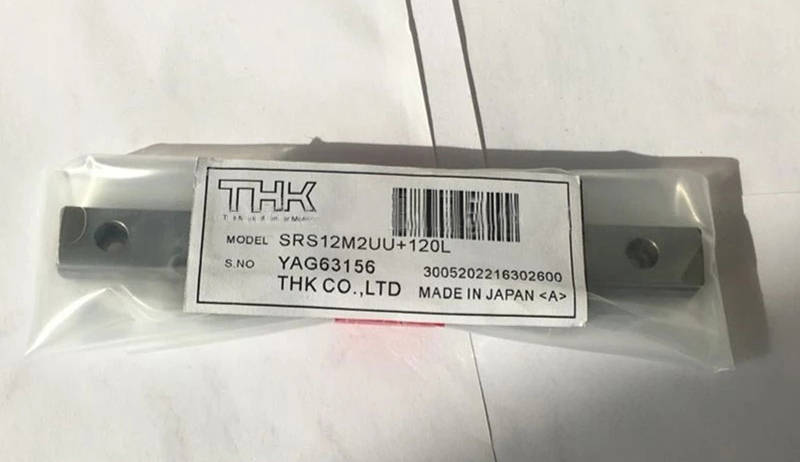

THK Linear Motion Guide SRS12M2UU+120L
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| Height M |
Width W |
Length L |
B | C | S x l | Pitch F |
d1xd2xh | Dynamic C |
Static C0 |
|
| kN | kN | |||||||||
| SRS7M | 8 | 17 | 23.4 | 12 | 8 | M2 x 2.3 | 15 | 2.4×4.2×2.3 | 1.51 | 1.29 |
| SRS9XM | 10 | 20 | 30.8 | 15 | 10 | M3 x 2.8 | 20 | 3.5x6x3.3 | 2.69 | 2.75 |
| SRS12M | 13 | 27 | 34.4 | 20 | 15 | M3 x 3.2 | 25 | 3.5x6x4.5 | 4 | 3.53 |
| SRS15M | 16 | 32 | 43 | 25 | 20 | M3 x 3.5 | 40 | 3.5x6x4.5 | 6.66 | 5.7 |
units: mm| Model No. | SRS7 | SRS7W | SRS9 | SRS9W | SRS12 | SRS12W | SRS15 | SRS15W |
| LM rail standard length (L0) |
40 55 70 85 100 115 130 |
50 80 110 140 170 200 260 290 |
55 75 95 115 135 155 175 195 275 375 |
50 80 110 140 170 200 260 290 320 |
70 95 120 145 170 195 220 245 270 320 370 470 570 |
70 110 150 190 230 270 310 390 470 550 |
70 110 150 190 230 270 310 350 390 430 470 550 670 870 |
110 150 190 230 270 310 430 550 670 790 |
| Standard pitch F | 15 | 30 | 20 | 30 | 25 | 40 | 40 | 40 |
| G | 5 | 10 | 7.5 | 10 | 10 | 15 | 15 | 15 |
| Max length | 480 | 480 | 1240 | 1430 | 1430 | 1600 | 1600 | 1800 |
units: mmAs a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
