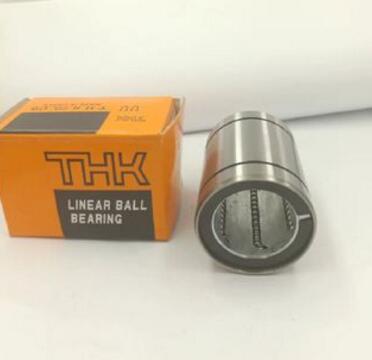

THK LME25 Linear Motion Guide

More about :THK LME25

Model No.	Ball rows	Main dimensions										Eccentricity (max)	Radial clearance tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Length		L1	Tolerance	L2	D0			Dynamic rating C	Static rating C0
		dr	Tolerance	D	Tolerance	L	Tolerance
		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	µm	µm	N	N	g
LME5	4	5	+0.008 0	12	0 -0.008	22	0 -0.008	14.5	0 -0.2	1.1	11.5	12	-5	206	265	11
LME8	4	8		16		25		16.5		1.1	15.2	12	-5	265	402	20
LME12	4	12		22	0 -0.009	32		22.9		1.3	21	12	-7	510	775	41
LME16	5	16	+0.009 -0.001	26		36		24.9		1.3	24.9	12	-7	775	1180	57
LME20	5	20		32	0 -0.011	45		31.5		1.6	30.3	15	-9	863	1370	91
LME25	6	25	+0.011 -0.001	40		58	0 -0.3	44.1	0 -0.3	1.85	37.5	15	-9	980	1570	215
LME30	6	30		47		68		52.1		1.85	44.5	15	-9	1570	2750	325
LME40	6	40	+0.013 -0.002	62	0 -0.013	80		60.6		2.15	59	17	-13	2160	4020	705
LME50	6	50		75		100		77.6		2.65	72	17	-13	3820	7940	1130
LME60	6	60		90	0 -0.015	125	0 -0.4	101.7	0 -0.4	3.15	86.5	20	-16	4710	10000	2220

As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
