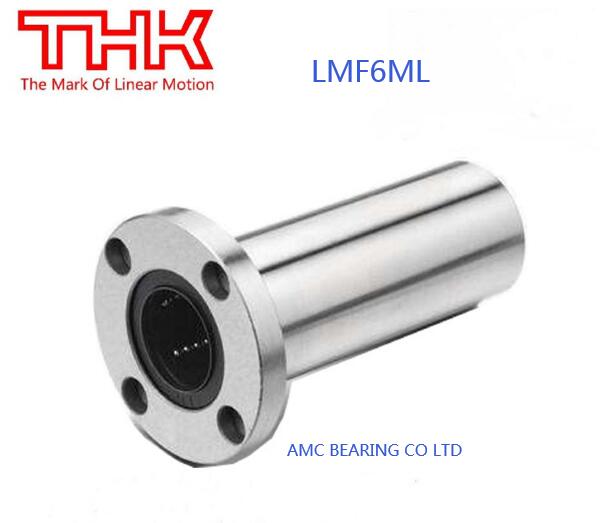

THK LMF6M Linear Motion Guide

More about :THK LMF6M

Model No.	Ball rows	Main dimensions											Flange perpen-dicularity	Eccentricity (max)	Radial clearance tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		H	PCD	Mounting hole d1×d2×h				Dynamic rating C	Static rating C0
		dr	Tolerance	D	Tolerance	L	Tolerance	D1	Tolerance
		mm		mm		mm		mm		mm	mm	mm	µm	µm	µm	N	N	g
LMF6M	4	6	0 -0.009	12	0 -0.011	19	0 -0.2	28	0 -0.2	5	20	3.4×6.5×3.3	12	12	–5	206	265	26.5
LMF8SM	4	8		15		17		32		5	24	3.4×6.5×3.3	12	12	–5	176	225	34
LMF8M	4	8		15		24		32		5	24	3.4×6.5×3.3	12	12	–5	265	402	40
LMF10M	4	10		19	0 -0.013	29		39		6	29	4.5×8×4.4	12	12	–5	373	549	78
LMF12M	4	12		21		30		42		6	32	4.5×8×4.4	12	12	–5	412	598	76
LMF13M	4	13		23		32		43		6	33	4.5×8×4.4	12	12	–7	510	775	94
LMF16M	5	16		28		37		48		6	38	4.5×8×4.4	12	12	–7	775	1180	134
LMF20M	5	20	0 -0.010	32	0 -0.016	42		54		8	43	5.5×9.2×5.4	15	15	–9	863	1370	180
LMF25M	6	25		40		59	0 -0.3	62		8	51	5.5×9.2×5.4	15	15	–9	980	1570	340
LMF30M	6	30		45		64		74		10	60	6.6×11×6.5	15	15	–9	1570	2750	460
