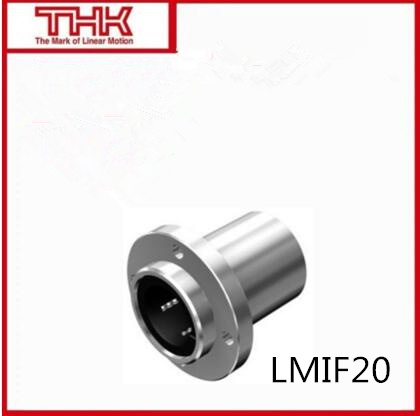

THK LMIF20 Linear Bushing
Country: Japan
BRAND: THK
Model number:LMIF20
Stock: in stock
Features:advanced high strength
Accuracy: Please consult customer service for details Certification
Standard: please consult customer service for details
Country: Japan
BRAND: THK
Model number:LMIF20
Stock: in stock
Features:advanced high strength
Accuracy: Please consult customer service for details Certification
Standard: please consult customer service for details
THK LMIF20 Linear Bushing
Model No. | Ball rows | Main dimensions | Flange perpen-dicularity |
Eccentricity (max) |
Radial clearance tolerance |
Basic load rating | Mass | ||||||||||||||
Inscribed bore diameter | Outer diameter | Overall length | Flange diameter | Pilot | D2 | H | PCD | Mounting hole d1×d2×h |
Dynamic C |
Static C0 |
|||||||||||
dr | Tolerance | D | Tolerance | L | Tolerance | D1 | Tolerance | I | Tolerance | ||||||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | µm | µm | µm | N | N | g | |||||||
LMIF6 | 4 | 6 | 0 -0.009 |
12 | 0 -0.011 |
19 | ±0.3 | 28 | 0 -0.2 |
5 | ±0.2 | 12 | 5 | 20 | 3.4×6×3.3 | 12 | 12 | -5 | 206 | 265 | 18 |
LMIF8 | 4 | 8 | 15 | 24 | 32 | 5 | 15 | 5 | 24 | 3.4×6×3.3 | 12 | 12 | -5 | 265 | 402 | 27 | |||||
LMIF10 | 4 | 10 | 19 | 0 -0.013 |
29 | 39 | 6 | 19 | 6 | 29 | 4.5×7.5×4.4 | 12 | 12 | -5 | 373 | 549 | 46 | ||||
LMIF12 | 4 | 12 | 21 | 30 | 42 | 6 | 21 | 6 | 32 | 4.5×7.5×4.4 | 12 | 12 | -5 | 412 | 598 | 52 | |||||
LMIF13 | 4 | 13 | 23 | 32 | 43 | 6 | 23 | 6 | 33 | 4.5×7.5×4.4 | 12 | 12 | -7 | 510 | 775 | 65 | |||||
LMIF16 | 5 | 16 | 28 | 37 | 48 | 6 | 28 | 6 | 38 | 4.5×7.5×4.4 | 12 | 12 | -7 | 775 | 1180 | 104 | |||||
LMIF20 | 5 | 20 | 0 -0.010 |
32 | 0 -0.016 |
42 | 54 | 8 | 32 | 8 | 43 | 5.5×9×5.4 | 15 | 15 | -9 | 863 | 1370 | 131 | |||
LMIF25 | 6 | 25 | 40 | 59 | 62 | 8 | 40 | 8 | 51 | 5.5×9×5.4 | 15 | 15 | -9 | 980 | 1570 | 267 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
