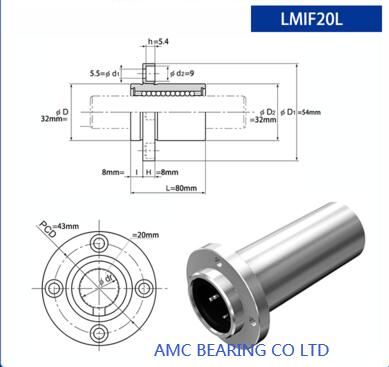

THK LMIF20L Linear Bushing

More about :THK LMIF20L

Model No.	Ball rows	Main dimensions														Flange perpen-dicularity	Eccentricity (max)	Radial clearance tolerance	Basic load rating		Mass
		Inscribed bore diameter		Outer diameter		Overall length		Flange diameter		Pilot		D2	H	PCD	Mounting hole d1×d2×h				Dynamic C	Static C0
		dr	Tolerance	D	Tolerance	L	Tolerance	D1	Tolerance	I	Tolerance
		mm		mm		mm		mm		mm		mm	mm	mm	mm	µm	µm	µm	N	N	g
LMIF6L	4	6	0 -0.010	12	0 -0.013	35	±0.3	28	0 -0.2	5	±0.2	12	5	20	3.4×6×3.3	12	12	-5	324	529	30
LMIF8L	4	8		15		45		32		5		15	5	24	3.4×6×3.3	12	12	-5	431	784	46
LMIF10L	4	10		19	0 -0.016	55		39		6		19	6	29	4.5×7.5×4.4	12	12	-5	588	1100	83
LMIF12L	4	12		21		57		42		6		21	6	32	4.5×7.5×4.4	12	12	-5	657	1200	95
LMIF13L	4	13		23		61		43		6		23	6	33	4.5×7.5×4.4	12	12	-7	814	1570	117
LMIF16L	5	16		28		70		48		6		28	6	38	4.5×7.5×4.4	12	12	-7	1230	2350	196
LMIF20L	5	20	0 -0.012	32	0 -0.019	80		54		8		32	8	43	5.5×9×5.4	15	15	-9	1400	2750	244
LMIF25L	6	25		40		112		62		8		40	8	51	5.5×9×5.4	15	15	-9	1560	3140	498
