Description

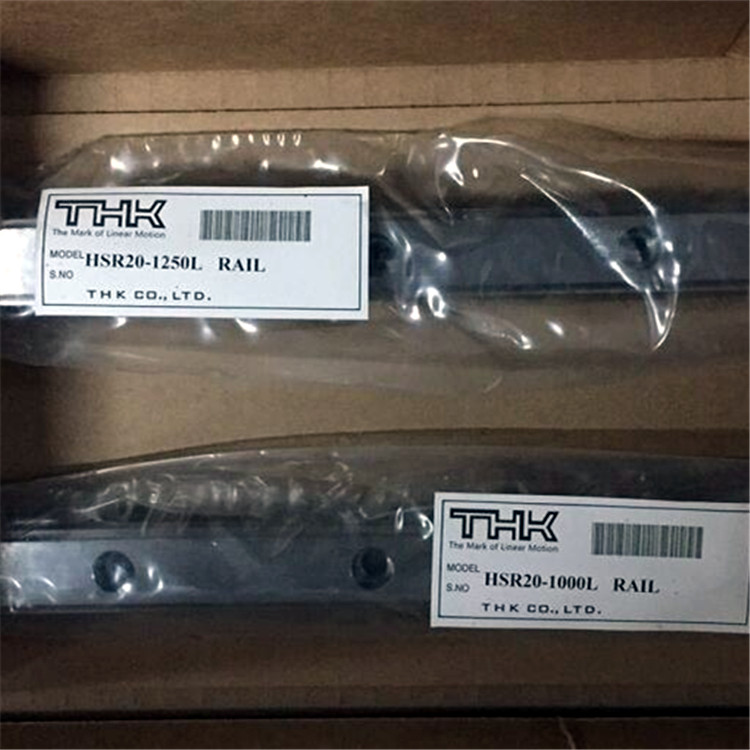

THK RAIL HSR20-1000L
| Model No. | HSR 15 | HSR 20 | HSR 25 | HSR 30 | HSR 35 | HSR 45 | HSR 55 | HSR 65 |
|---|---|---|---|---|---|---|---|---|
| LM railstandardlength(L0) | 16022028034040046052058064070076082094010001060112011801240136014801600 | 160 220280 340400 460520 580640 700760 8209401000106011201180124013601480160017201840196020802200 | 220 280340 400460 520580 640700 760820 9401000 10601120 11801240 13001360 14201480 15401600 17201840 19602080 22002320 24402500 | 280 360440 520600 680760 840920 10001080 11601240132014001480156016401720180018801960204022002360252026802840 | 280 360440 520600 680760 840920 10001080 11601240 13201400 14801560 16401720 18001880 19602040 22002360 25202680 2840 | 570 675780 8859901095120013051410151516201725183019352040214522502355246025652670277528802985 | 78090010201140126013801500162017401860198021002220234024602580270028202940 | 1270157020202620 |
| Standard pitch F | 60 | 60 | 60 | 80 | 80 | 105 | 120 | 150 |
| G | 20 | 20 | 20 | 20 | 20 | 22.5 | 30 | 35 |
| Max length | 3000 | |||||||
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
