Description

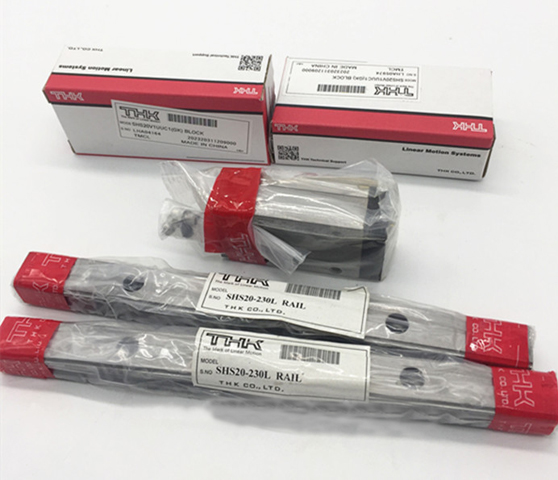

THK RAIL SHS20-230
| Model No. | SHS 15 | SHS 20 | SHS 25 | SHS 30 | SHS 35 | SHS 45 | SHS 55 | SHS 65 |
|---|---|---|---|---|---|---|---|---|
| LM railstandardlength(L0) | 16022028034040046052058064070076082094010001060112011801240136014801600 | 220 280340 400460 520580 640700 760820 9401000106011201180124013601480160017201840196020802200 | 220 280340 400460 520580 640700 760820 9401000 10601120 11801240 13001360 14201480 15401600 17201840 19602080 22002320 2440 | 280 360440 520600 680760 840920 10001080 11601240 13201400 14801560 16401720 18001880 19602040 22002360 25202680 2840 | 280 360440 520600 680760 840920 10001080 11601240 13201400 14801560 16401720 18001880 19602040 22002360 25202680 2840 | 570 675780 8859901095120013051410151516201725183019352040214522502355246025652670277528802985 | 78090010201140126013801500162017401860198021002220234024602580270028202940 | 1270157020202620 |
| Standard pitch F | 60 | 60 | 60 | 80 | 80 | 105 | 120 | 150 |
| G | 20 | 20 | 20 | 20 | 20 | 22.5 | 30 | 35 |
| Max length | 3000 | |||||||
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
