Description

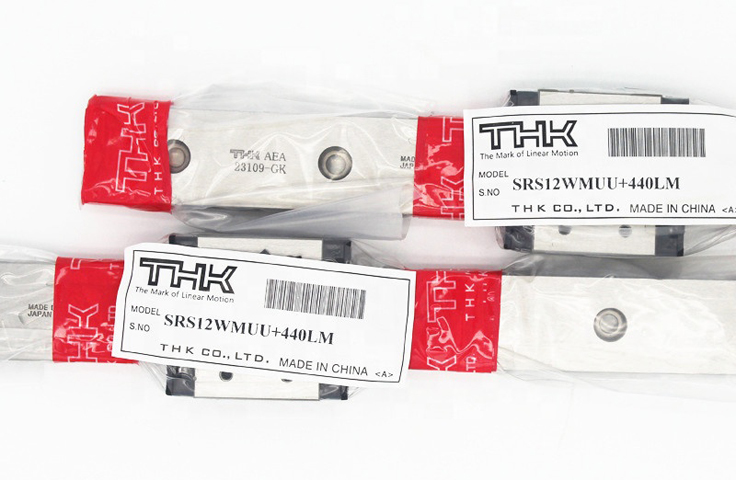

THK SRS12WMUU+440LM
| Model No. | Outer dimensions | Block dimensions | Rail dimensions | Basic load rating | ||||||
| Radial | ||||||||||
| HeightM | WidthW | LengthL | B | C | S x l | PitchF | d1xd2xh | Dynamicrating C | StaticratingC0 | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | kN | |
| SRS7WM | 9 | 25 | 31 | 19 | 10 | M3 x 2.8 | 30 | 3.5x6x3.2 | 2.01 | 1.94 |
| SRS9WM | 12 | 30 | 39 | 21 | 12 | M3 x 2.8 | 30 | 3.5x6x4.5 | 3.29 | 3.34 |
| SRS12WM | 14 | 40 | 44.5 | 28 | 15 | M3 x 3.5 | 40 | 4.5x8x4.5 | 5.48 | 5.3 |
| SRS15WM | 16 | 60 | 55.5 | 45 | 20 | M4 x 4.5 | 40 | 4.5x8x4.5 | 9.12 | 8.55 |
| Model No. | SRS7 | SRS7W | SRS9 | SRS9W | SRS12 | SRS12W | SRS15 | SRS15W |

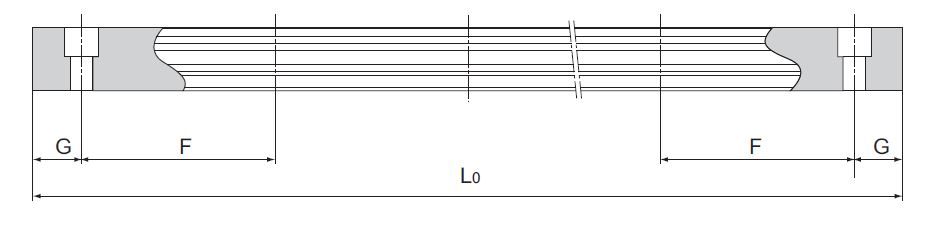

| LM railstandardlength(L0) | 40 5570 85100115130 | 50 80110 140170200260290 | 55 7595 115135155175195275375 | 50 80110 140170200260290320 | 70 95 120145 170195 220245 270320 370470 570 | 70 110150 190230 270310 390470 550 | 70 110 150190 230270 310350 390430 470550 670870 | 110 150190 230270 310430 550670 790 |
| Standard pitch F | 15 | 30 | 20 | 30 | 25 | 40 | 40 | 40 |
| G | 5 | 10 | 7.5 | 10 | 10 | 15 | 15 | 15 |
| Max length | 480 | 480 | 1240 | 1430 | 1430 | 1600 | 1600 | 1800 |
As a professional Linear Motion Guide supplier, we are mainly responsible for the global sales and technical services of THK products. Our warehouses are located in HongKong and ShenZhen City, it is very convenient for demands of global market . Because there are many types of THK products, we can not upload all of them at present. More information please directly contact us.
