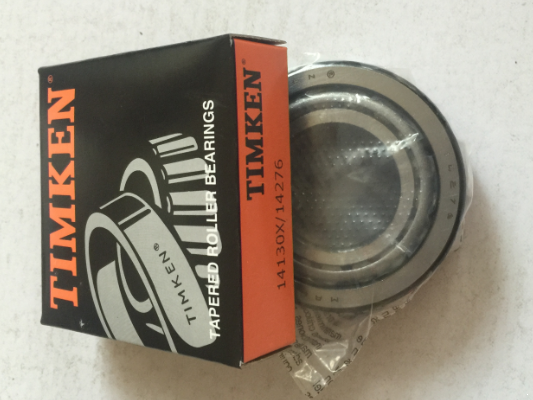

Timken Part Number 14130 – 14276, Tapered Roller Bearings – TS (Tapered Single) Imperial

TIMKEN BEARING

Description

Timken  14130 – 14276 Specifications

Series

 14000

Cone Part Number

 14130

Cup Part Number

 14276

Design Units

 Imperial

Bearing Weight

 0.30 Kg0.7 lb

Cage Type

 Stamped Steel

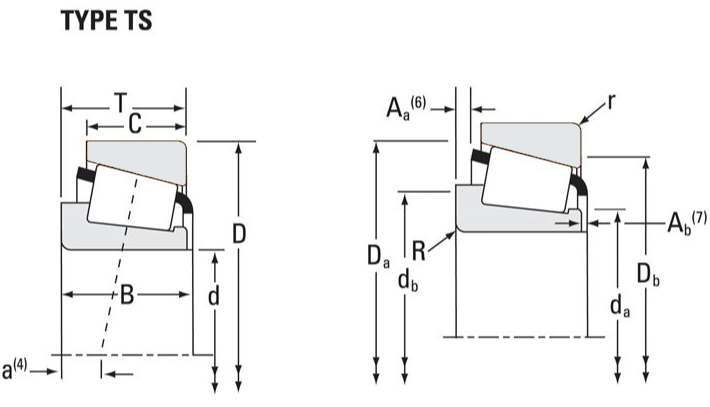

Dimensions

d – Bore

 33.338 mm1.3125 in

D – Cup Outer Diameter

 69.012 mm2.7170 in

B – Cone Width

 19.583 mm0.7710 in

C – Cup Width

 15.875 mm0.6250 in

T – Bearing Width

 19.845 mm0.7813 in

Abutment and Fillet Dimensions

R – Cone Backface “To Clear” Radius1 3.560 mm0.14 in
r – Cup Backface “To Clear” Radius2 1.27 mm0.050 in

da – Cone Frontface Backing Diameter

 39.62 mm1.56 in

db – Cone Backface Backing Diameter

 45.97 mm1.81 in

Da – Cup Frontface Backing Diameter

 63.00 mm2.52 in

Db – Cup Backface Backing Diameter

 59.94 mm2.36 in

Ab – Cage-Cone Frontface Clearance

 1.8 mm0.07 in

Aa – Cage-Cone Backface Clearance

 0.5 mm0.02 in
a – Effective Center Location3 -4.3 mm-0.17 in

Basic Load Ratings

C90 – Dynamic Radial Rating (90 million revolutions)4 3180 lbf14200 N
C1 – Dynamic Radial Rating (1 million revolutions)5 12300 lbf54600 N

C0 – Static Radial Rating

 13900 lbf61700 N
Ca90 – Dynamic Thrust Rating (90 million revolutions)6 2080 lbf9260 N
