Timken Part Number H924033 – H924010, Tapered Roller Bearings – TS (Tapered Single) Imperial

TIMKEN BEARING

Description

Timken H924033 – H924010 Specifications

Series

 H924000

Cone Part Number

 H924033

Cup Part Number

 H924010

Design Units

 Imperial

Bearing Weight

 9 Kg19.8 lb

Cage Type

 Stamped Steel

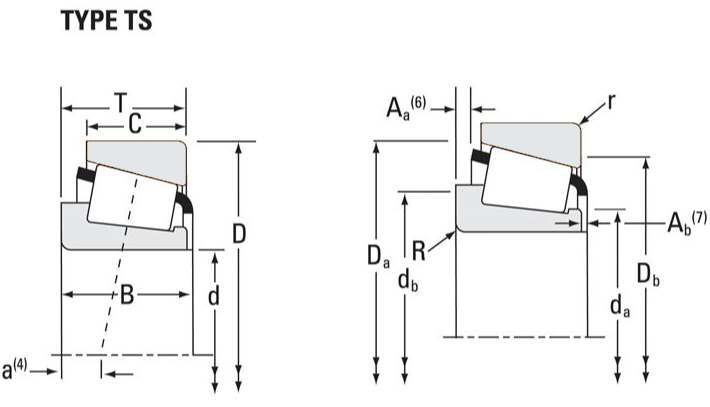

Dimensions

d – Bore

 101.600 mm4.0000 in

D – Cup Outer Diameter

 214.313 mm8.4375 in

B – Cone Width

 52.388 mm2.0625 in

C – Cup Width

 39.688 mm1.5625 in

T – Bearing Width

 55.563 mm2.1875 in

Abutment and Fillet Dimensions

R – Cone Backface “To Clear” Radius1 3.560 mm0.14 in
r – Cup Backface “To Clear” Radius2 3.3 mm0.130 in

da – Cone Frontface Backing Diameter

 128.02 mm6.02 in

db – Cone Backface Backing Diameter

 132.08 mm5.2 in

Da – Cup Frontface Backing Diameter

 205.00 mm8.11 in

Db – Cup Backface Backing Diameter

 185.93 mm7.32 in

Ab – Cage-Cone Frontface Clearance

 4.3 mm0.17 in

Aa – Cage-Cone Backface Clearance

 5.8 mm0.23 in
a – Effective Center Location3 6.9 mm0.27 in

Basic Load Ratings

C90 – Dynamic Radial Rating (90 million revolutions)4 32500 lbf144000 N
C1 – Dynamic Radial Rating (1 million revolutions)5 125000 lbf557000 N

C0 – Static Radial Rating

 137000 lbf610000 N
Ca90 – Dynamic Thrust Rating (90 million revolutions)6 37500 lbf167000 N
